Southeast Asian island off-grid and high-priced scenarios: Wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage system B2B selection guide

Next to the shrimp pond oxygenator in the Mekong Delta of Vietnam, in the diesel engine room of the resort on Palawan Island in the Philippines, and in the fishing village microgrid of the Kuril Islands in Indonesia, the lithium iron phosphate energy storage system is becoming a core solution to replace diesel power generation and cope with high electricity prices.The common pain points of these scenarios are: weak grid coverage or complete off-grid, diesel power generation costs up to 0.35-0.55 USD/kWh, and high temperature and humidity environments pose serious challenges to equipment cycle life.Hebei Chanming New Energy (CHANMING Energy) provides an engineered B2B selection framework from load list to capacity selection for the two product lines of wall-mounted 5-10 kWh and stackable 20-64 kWh based on practical deployment experience in Southeast Asia.

I. Why a dedicated lithium iron phosphate energy storage system is needed for Southeast Asian island scenarios

Southeast Asian islands and remote coastal areas generally face three types of power dilemmas: First, the main network extension cost is extremely high, and only about 2,000 of the approximately 7,600 islands in the Philippines achieve stable power supply; second, diesel power generation operation and maintenance costs fluctuate with oil prices, and the CIF price of diesel in the eastern islands of Indonesia usually reaches 0.8-1.2 USD/L; third, high-temperature and high-humidity accelerated lead-acid batteries are aging, and need to be replaced in 2-3 years.

The cycle life of the lithium iron phosphate (LiFePO4) chemical system can still reach more than 3,000 times (80% DoD) at 45°C, which is 4-6 times that of lead acid.With the BMS active equalization and can/RS485 communication protocol, it can be seamlessly docked with mainstream hybrid inverters (such as Victron, Deye, SMA) to achieve PV priority, battery replenishment, and diesel backup tertiary energy scheduling.For B2B dealers, this means lower after-sales repair rates and higher customer re-purchase stickiness.

II. Wall-mounted 5-10 kWh: Off-grid preferred for households and small businesses

Wall-mounted energy storage batteries use 51.2V nominal voltage, lithium iron phosphate batteries, with a capacity covering 5 kWh to 10 kWh, and are designed for space-constrained household or small commercial scenarios.Typical applications include: shrimp pond oxygenation machine backup in the Mekong Delta, Vietnam (8 hours of operation at night, with a load of about 300-500W), air conditioning and lighting in Palawan, Philippines (daily electricity consumption 6-8 kWh), and power protection in a small convenience store refrigerator in Bali, Indonesia.

The core advantage of this product line is that it is easy to install - the wall-mounted design saves floor space, the IP20 protection level is suitable for indoor or semi-outdoor sheltered environments, the operating temperature range is -10°C to 50°C, and it can operate at full power at ambient temperatures of 35-40°C typical in Southeast Asia.In terms of cycle life, 80% DoD can reach 6,000 times at 25°C and still maintain more than 3,000 times at 45°C, which significantly reduces the full-life cycle electricity cost (LCOS about 0.08-0.12 USD/kWh).

Wall-mounted 5-10 kWh Core Parameters Table

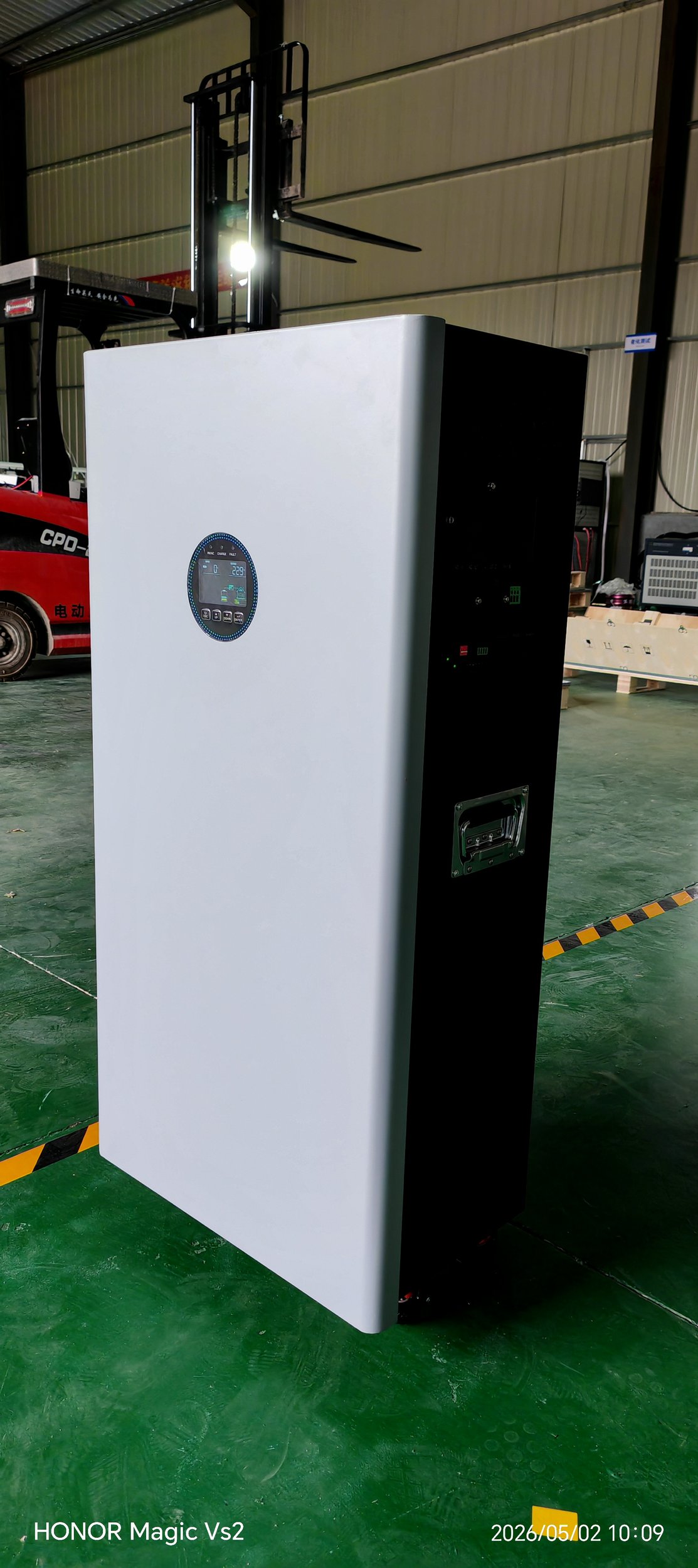

III. Stacked 20-64 kWh: Mainstay of Island Microgrids and Commercial Energy Storage

Modular capacity of 20 kWh to 64 kWh is provided for scenarios with larger loads, such as Philippine island resorts (40-80 kWh per day), Indonesian fishing village microgrids (serving 20-50 households), Vietnamese coastal communication base station clusters - stacked energy storage systems.The system adopts a standard 19-inch rack or stack design and supports parallel expansion to hundreds kWh, meeting power needs from single buildings to small communities.

The core engineering value of stackable systems lies in scalability and ease of maintenance.Each module is managed independently BMS, which supports hot-swap replacement. A single module failure does not affect the overall operation of the system.In the microgrid project in the Kuril Islands of Indonesia, the stacked system was combined with a 10kWp photovoltaic array to achieve an average daily power generation of 35-45 kWh. The operation time of the diesel generator was reduced from 14 hours to 3 hours per day, and the fuel cost was reduced by about 70%.The program has completed practical deployment verification in many countries in Southeast Asia, and the system availability rate exceeds 99%.

Stackable 20-64 kWh Core Parameters Table

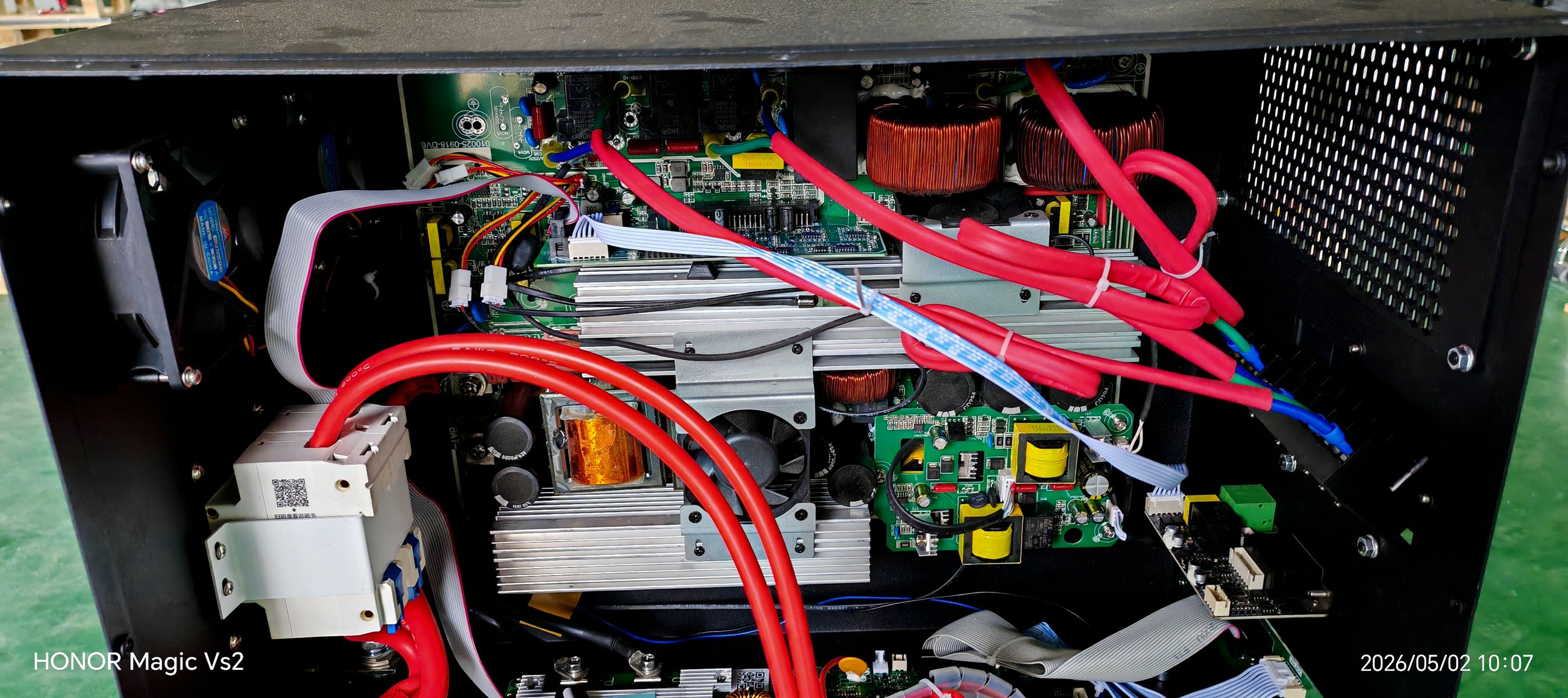

IV. Inverse control all-in-one computer: an integrated program to simplify installation on islands

In response to the reality of high transportation costs and limited installation technicians on Southeast Asian islands, the inverter controller (hybrid inverter + integrated control) integrates the MPPT charging controller, inverter and system control into a single chassis, reducing on-site wiring complexity and failure points.This solution is particularly suitable for off-grid island projects in the Philippines and Indonesia - when the equipment arrives in port, it is only necessary to connect the photovoltaic array, the battery pack and the load to complete the commissioning.

For B2B dealers, inverse control all-in-one machines mean lower inventory SKU complexity and faster project delivery cycles.With wall-mounted or stackable batteries, a complete off-grid/grid-connected switching energy storage solution can be formed.Relevant selection logic can refer to the station article "[Off-grid and high-priced scenarios on Southeast Asian islands: Wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage system B2B selection plan] (/uk/solutions/)", where more detailed engineering calculations are made for load list and capacity matching.

V. B2B Selection Decision Framework: From Load List to ROI Calculation

For dealers and installers in Vietnam, the Philippines, and Indonesia, it is recommended to complete the selection as follows:

Step 1: Load list and daily electricity consumption calculation. List the power (W) of all loads and the average number of hours of daily operation, and calculate the daily power consumption (kWh).For example: 3 1.5 hp air conditioners (3 × 1,100W × 8h = 26.4 kWh) + lighting and sockets (500W × 6h = 3 kWh) = 29.4 kWh/day.

Step 2: Determine the energy storage capacity. Configure the battery capacity by 1.2-1.5 times the daily power consumption (considering DoD and rainy days for backup).The above case requires 35-45 kWh, corresponding to a stacked 40 kWh or 64 kWh system.

Step 3: Match photovoltaics with inverters. The photovoltaic array power is configured at 1.2-1.5 times the daily power consumption (considering the system efficiency and the peak hours of sunshine).The average daily peak sunshine in Southeast Asia is about 4-5 hours, and the 40 kWh system is recommended to be equipped with 10-12kWp photovoltaics.

Step 4: ROI calculation. Take off-grid resorts in the Philippines as an example: diesel power generation costs about 0.45 USD/kWh, annual electricity consumption 12,000 kWh, and annual fuel cost 5,400 USD.The initial investment of the energy storage system (40 kWh batteries + 12kWp photovoltaic + inverse control integrated machine) is about 18,000-22,000 USD, the annual operation and maintenance cost is about 300 USD, and the investment payback period is about 4-5 years.The system has a design life of more than 10 years and an internal rate of return (IRR) of 15-20%.

Step 5: Certification and compliance confirmation. Exports to Southeast Asia need to ensure that products have CE certification, UN38.3 transportation reports and IEC 62109 safety reports can be provided on request.Dealers are advised to confirm additional requirements for inverters and batteries for grid-connected standards in the target country (e.g. EVN in Vietnam, ERC in the Philippines, PLN in Indonesia) prior to project bidding.

Frequently Asked Questions (FAQ)

Q1: How do wall-mounted 5-10 kWh and stacked 20-64 kWh quickly select models?

A: Choose a wall-mounted type with a daily power consumption of less than 10 kWh, 10-30 kWh choose a stacked type 20-40 kWh, and more than 30 kWh choose a stacked type 64 kWh or parallel expansion.It is necessary to simultaneously calculate the load peak power to match the inverter.

Q2: What is the life of lithium iron phosphate batteries in high-temperature environments in Southeast Asia?

A: At 45°C, the 80% DoD cycle life can still reach more than 3,000 times, which is about 5 times that of lead-acid batteries.It is recommended to install in a ventilation shelter to avoid direct sunlight, which can further extend the life.

Q3: Does the product support mixed operation with existing diesel generators?

A: Yes. The inverse control all-in-one machine can be configured with a diesel generator as a backup input, the system prefers to use photovoltaics and batteries, and the diesel engine is only started on consecutive rainy days or high loads, which can significantly reduce fuel consumption.

Q4: Minimum order quantity and delivery cycle for B2B wholesale?

A: Wall-mounted and stackable products are supported for mixed batches. For specific MOQs and delivery dates, please contact the sales team through the official website.CE Certification is in place and UN38.3 and IEC 62109 reports are available upon request.

Q5: Is installation guidance and after-sales technical support provided?

A: Provide English installation manuals, wiring diagrams, and remote debugging support.For the Southeast Asian market, online training can be arranged for technical teams to assist dealers in building local installation capabilities.

Conclusion

The requirements for energy storage systems in off-grid and high-priced scenarios on Southeast Asian islands are much higher than those in the general consumer market - high temperature, high humidity, inconvenient transportation, and limited operation and maintenance resources, each of which is testing the engineering reliability of products.The wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage systems of Hebei Chanming New Energy (changing Energy) are designed based on the actual deployment experience of Southeast Asian countries. The CE certification is ready, and the UN38.3 and IEC 62109 reports can be provided upon request.We provide B2B wholesale and technical support to dealers, installers and importers in Vietnam, the Philippines and Indonesia, and welcome to obtain detailed specifications and quotation plans through the official website (/uk/products/).

This article was reviewed by the Hebei Chanming New Energy technical team and was written based on actual project deployment experience in the Southeast Asian market.
