Frequent power outages and off-grid scenarios in Africa: B2B options for wall-mounted and stacked lithium iron phosphate energy storage systems in Nigeria/Kenya/Ghana

In Lagos, Nigeria, Nairobi, Kenya, and Accra, Ghana, average power outages of 4–12 hours per day are the norm for industrial, commercial, and residential users. High oil prices and high maintenance costs for diesel generators are driving demand for lithium iron phosphate energy storage systems.For dealers, installers and importers, the real difficulty in type selection is not "how many batteries to buy", but how to complete the capacity matching according to the load list, DoD, cycle life and BMS agreement, and ensure CE/IEC 62109/UN38.3 compliance.Based on our off-grid and standby project deployment experience in West and East Africa, this paper gives an engineering selection path for wall-mounted 5–10 kWh and stacked 20–64 kWh products.

I. Target Market and Target Customer: Who is Paying for the Outage

The core driving force of energy storage demand in Africa is the triple superposition of "unreliable grid + rising electricity prices + high diesel costs", and the customer structure varies significantly from country to country:

• Nigeria : Communication base stations, small clinics, chain stores, and high- and middle-income homes in Lagos and Abuja.The power grid is interrupted for an average of 6–12 hours a day. Gasoline/diesel generators are the main alternative, and users have a strong demand for "quiet, no refueling, and remote monitoring".
• Kenya : Schools, clinics, small processing plants, and off-grid villages in Nairobi and surrounding counties.Some regional power grids have weak coverage, and solar energy + energy storage is a main power source rather than a backup power source, which is more sensitive to cycle life and high temperature attenuation.
• Ghana : Accra, Kumasi hotels, supermarkets, cold storage, and office parks.The synergistic stability of the inverter and the battery is the most concerned indicator for installers due to the fluctuation of the power outage superposition voltage.

The target customer profile is very clear: local energy storage dealers, solar EPC installers, import wholesalers , and a small number of end-users who have built microgrids themselves.They need products that can be delivered in bulk, are fully certified, support parallel expansion, and can be remotely diagnosed after sales, rather than a single retail unit.

II. Scene load list: Calculate power first, then capacity

The first step in energy storage selection is always the load list. Common scenarios in Africa can be divided into three categories based on power output and backup time:

The key engineering parameter is the distinction between continuous power and peak power : the surge current at the moment of starting the air conditioner, water pump, and compressor can reach 3–5 times the rated value, and the peak discharge capacity of the inverter and the battery BMS must be covered.At the time of selection, it is recommended to determine the inverter power according to the "continuous load × 1.25 safety factor", and then press the "daily average power consumption ÷ DoD ÷ system efficiency" to reverse the battery capacity.

III. Product selection: wall-mounted 5–10 kWh and stacked 20–64 kWh

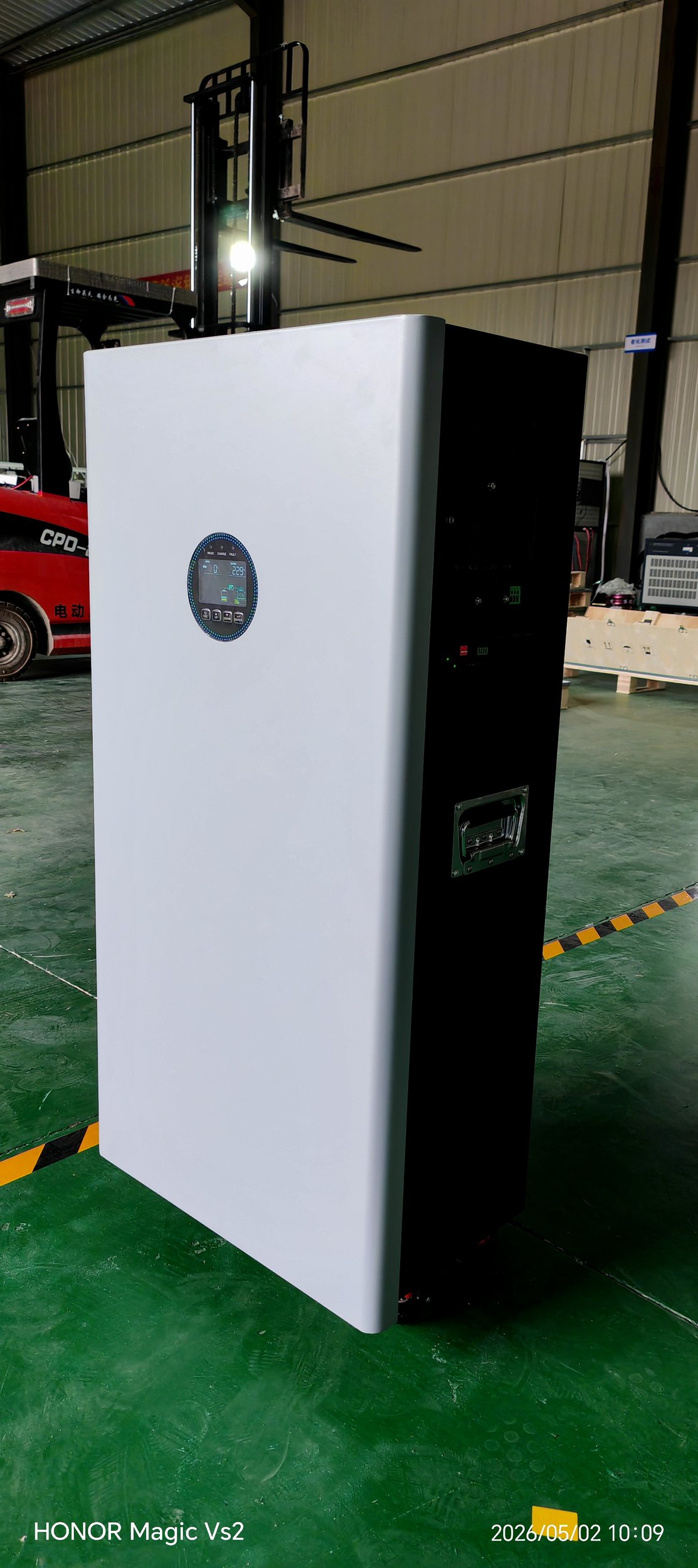

3.1 Wall-mounted energy storage battery 5–10 kWh (51.2V lithium iron phosphate)

For small and medium power scenarios such as residences, shops, clinics, etc., the wall-mounted design saves floor space and is suitable for brick-concrete wall installation common in Africa.The core parameters are as follows:

In the store preparation project in Lagos, Nigeria, a single 10 kWh wall-mounted supportable refrigerator + lighting + cash register system is about 6–8 hours. If air conditioning is superimposed, two units are recommended to be connected in parallel.For installers, the value of a wall mount is in a standardized installation process and a reproducible quotation model that makes it easy to quickly open channels.

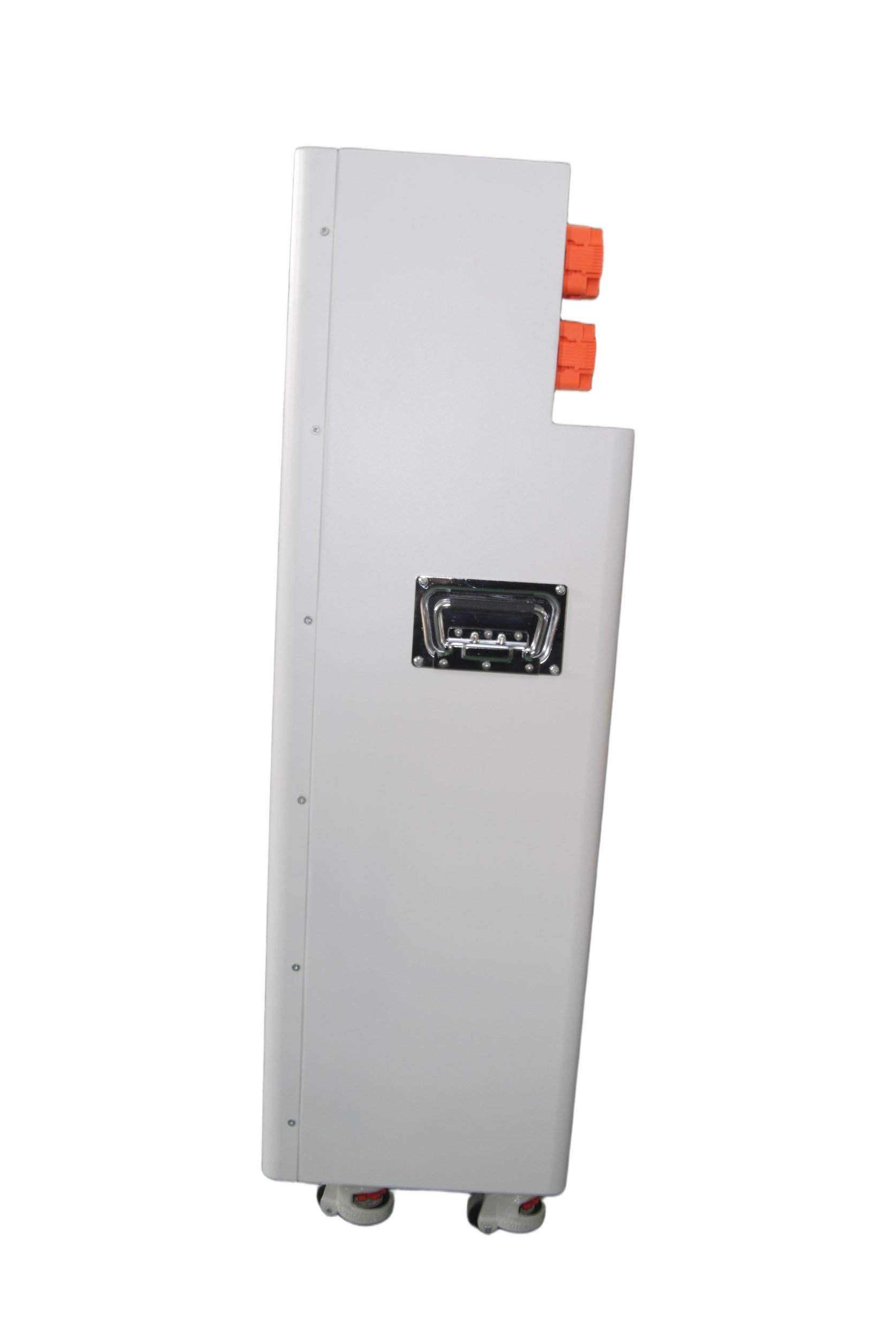

3.2 Stackable energy storage system 20–64 kWh

For medium-high power scenarios such as communication base stations, microgrids, hotels and processing plants, the stacked modular design supports on-site capacity expansion on demand, starting from 20 kWh and expanding to 64 kWh.The core parameters are as follows:

In off-grid clinics in Kenya and cold storage and backup scenarios in Ghana, stacked systems are usually combined with photovoltaic arrays and hybrid inverters to form a "light, storage and firewood" triple supply architecture: photovoltaic priority power supply, energy storage to bear night and cloudy loads, and diesel engines are only used as a back pocket in extreme weather.This architecture reduces diesel consumption by 60-80% and is the most intuitive source of ROI.

It should be noted that if the project involves mobile scenarios such as vehicle parking air conditioning, 8.2 kWh parking lithium batteries can be evaluated separately, but this article focuses on fixed backup and off-grid applications.

IV. Capacity selection method and ROI calculation

4.1 Capacity calculation formula

Recommended capacity (kWh) = Average daily power consumption (kWh) ÷ DoD ÷ System efficiency

Take a shop in Nigeria that uses an average of 8 kWh per day: take DoD 80%, system efficiency 90%, the recommended capacity is 8 ÷ 0.8 ÷ 0.9 ≈ 11.1 kWh, and the actual configuration can be selected as two 5 kWh or one 10 kWh wall-mounted (10 kWh + 5 kWh parallel for redundancy).

4.2 ROI comparison logic

Based on diesel generators: Assuming an average daily power generation of 8 kWh, the combined cost of diesel generators (fuel + maintenance + depreciation) is estimated at 0.35–0.45 USD/kWh, and the annual operating cost is about 1000–1300 USD.The lithium iron phosphate energy storage system is calculated on the basis of 6,000 cycles and 80% DoD. The amount of electricity that can be released during the life cycle is about 4800 times the nominal capacity, and the cost per kWh is significantly lower than the diesel path.The specific recycling cycle depends on the local electricity price, sunshine resources and diesel fuel prices. It is recommended that installers model the actual parameters of the project instead of applying uniform numbers.

4.3 High temperature and cycle life

The ambient temperature in parts of West and East Africa has been 30–40°C for a long time, and the temperature in the battery compartment may be higher.Lithium iron phosphate has better thermal stability at high temperatures than lithium ternate, but it should still be noted that: The installation location should avoid direct sunlight and maintain ventilation ; the upper limit of charging temperature of 45 °C means that high-current charging should be avoided during noon and high temperatures.The temperature protection and derating strategy of BMS is a function point that must be confirmed when selecting models.

V. Certification compliance and B2B delivery points

For importers and distributors, customs clearance and compliance are prerequisites for the project to be able to land:

• CE Certification : obtained, certificate documents can be provided for compliance review of the EU standard system.
• UN38.3 : A mandatory requirement for lithium battery transportation, reporting available upon request, for sea/air customs declarations.
• IEC 62109 : Safety standards for inverters and energy storage systems, reporting available upon request, facilitating participation in international tenders and grid-connected reviews.

The delivery level suggests focusing on three points: first, the compatibility of the BMS communication protocol with the local mainstream hybrid inverter to avoid on-site commissioning and rework; second, the packaging and transportation scheme needs to meet the UN38.3 requirements; third, the spare parts and remote diagnostic capabilities, the after-sales response radius of the African project is large, and remote reading of BMS data can significantly reduce service costs.

If you want to compare the selection differences between different markets, you can refer to our wall-mounted and stacked lithium iron phosphate solutions for high-temperature grid instability scenarios in Yemen and Iraq, and the wall-mounted energy storage selection articles in Pakistan and Bangladesh under the normalization of power limitation in South Asia. The selection logic can confirm each other.Product specifications and certification documents are available on the/uk/products/page, and scenario-based solutions can be found at/uk/solutions/.

Frequently Asked Questions (FAQ)

Q1: Are Nigerian stores equipped with electricity, 5 kWh or 10 kWh wall-mounted?

A: The load list is listed first.If only lighting, fans, routers, refrigerators, average daily 4–6 kWh, select 5–10 kWh for a single unit; if refrigerators and air conditioners are included, it is recommended that 10 kWh or two units be connected in parallel, and confirm that the peak power of the inverter covers the starting surge.

Q2: Will the lifetime of the lithium iron phosphate energy storage system be shortened at high temperatures in Africa?

A: Affected but controllable.The thermal stability of lithium iron phosphate is better than that of lithium ternate, and the cycle life is nominally more than 6000 times (80% DoD, 25°C).High temperature environments should avoid direct sunlight, maintain ventilation, and rely on BMS temperature protection and derating strategies.

Q3: Can stackable 20–64 kWh systems be expanded later?

A: Yes. The stackable design adopts a modular design to support on-demand module expansion to achieve capacity and power synchronization, suitable for base stations, microgrids and other load-growing scenarios, and the initial investment can be configured according to the minimum capacity.

Q4: What certifications are required for products to be exported to Africa?

A: CE is certified; UN38.3 is a mandatory requirement for lithium battery transportation, IEC 62109 is used for system security review, and both report available upon request, which can be used for customs clearance and international bidding compliance documents.

Q5: What is the minimum order quantity and lead time for B2B wholesale?

A: The specific MOQ and delivery date are confirmed by the model and the destination port, and it is recommended that dealers plan quarterly usage.The product supports multiple parallel connections, which is convenient for batch delivery by project and reduces inventory pressure.

Conclusion

The blackout and off-grid scenario in Africa is not a short-term demand, but a structural market that has lasted for more than a decade.For dealers and installers, choosing the right capacity level, clearing the load list, and confirming certification compliance can determine the success or failure of the project more than simply comparing prices.The wall-mounted 5–10 kWh is suitable for preparing electricity for quickly spreading residential and commercial buildings, while the stacked 20–64 kWh carries the main loads of base stations, microgrids, and industry and commerce, which can be combined to cover most scenarios.This article was compiled by the technical team of Hebei (G2) (changing Energy) based on the actual deployment experience in West Africa and East Africa, and the product parameters are subject to the official specifications.
