Energy storage options under the normalization of power limitation in South Asia: B2B guidelines for wall-mounted and stacked lithium iron phosphate systems in Pakistan and Bangladesh

In Karachi, Pakistan and Dhaka, Bangladesh, the planned load-shedding power limit of 4-8 hours a day has become a normal operating condition for industry, commerce and residential buildings.For local dealers, installers and importers, selecting lithium iron phosphate energy storage systems suitable for high temperature, high humidity, and frequent grid switching scenarios directly determines the quality of project delivery and the return on investment of end customers.Based on the actual deployment experience in South Asia, this solution focuses on two product lines, wall-mounted 5-10 kWh and stacked 20-64 kWh, giving the selection logic that can be implemented.

I. Application and target customer positioning

Core scenario : In Pakistan (Karachi, Lahore, Islamabad) and Bangladesh (Dhaka, Chittagong), urban residences, small shops, communication base stations, and light industrial plants generally face planned power limits of 1-3 hours multiple times a day, combined with a surge in air conditioning load caused by high temperatures above 45°C in summer.

Target customers :

• Local energy storage system dealers and wholesalers need a stable supply and a fully certified product portfolio;
• installers who undertake residential and commercial power preparation projects need plug-and-play wall-mounted solutions;
• system integrators of communication base stations and small factories prefer stackable expansion architectures.

This market is price-sensitive, but is equally concerned with cycle life and high temperature decay rates.The thermal stability of the lithium iron phosphate (LiFePO4) chemical system at 45°C and a cycle life of more than 6000 cycles are the core selling points for the replacement of lead acid and lithium ternate.

II. Load list and capacity selection logic

The first step in model selection is to quantify the load.Typical residential and commercial backup loads in South Asia can be divided into three categories:

Capacity calculation formula : Required capacity (kWh) = Total load power (kW) × Standby duration (h) ÷ Inverter efficiency (0.9) ÷ Depth of discharge (DoD, 0.8 recommended).

Take a residential set in Dhaka as an example: the base load is 0.6 kW + the refrigerator is 0.2 kW + the air conditioner is 1.2 kW = 2.0 kW, and the required capacity is 2.0 × 4 ÷ 0.9 ÷ 0.8 ≈ 11.1 kWh for 4 hours of standby power.At this time, the wall-mounted 10 kWh single unit is close to the upper limit. It is recommended to use the wall-mounted 5 kWh in parallel or directly upgrade to the stackable 20 kWh system to reserve space for expansion.

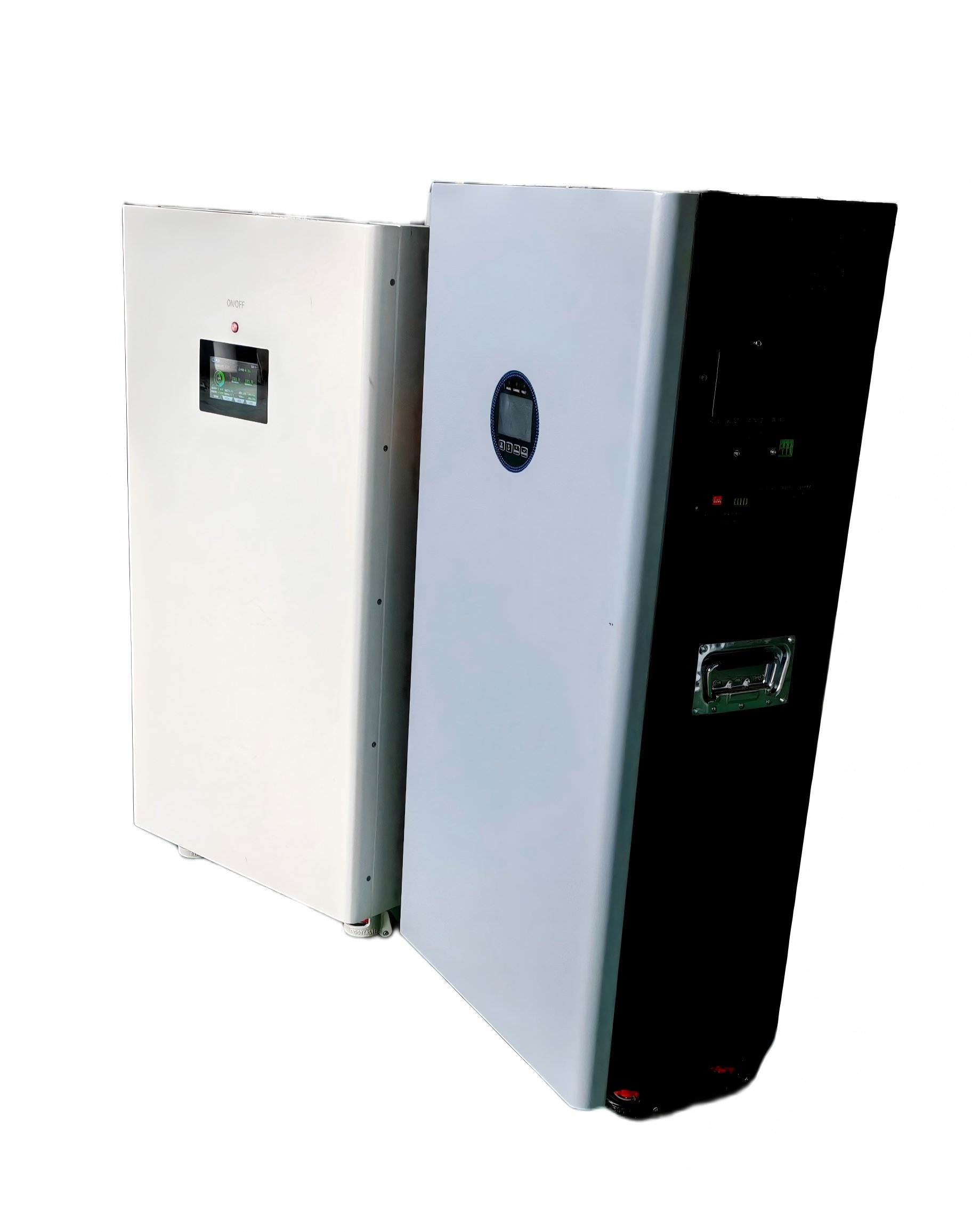

III. Product plan 1: Wall-mounted 5-10 kWh lithium iron phosphate energy storage battery

Adaptation scenario : Pakistan and Bangladesh urban residential, small shops, single base station backup power.

Core parameters :

• Nominal voltage: 51.2V
• Capacity range: 5 kWh/10 kWh
• Chemical system: Lithium iron phosphate (LiFePO4)
• Cycle life: ≥ 6000 cycles (25°C, 0.5C charge and discharge, 80% DoD)
• Communication protocol: Supports mainstream BMS protocol (can/RS485), can communicate with hybrid inverters
• Protection and certification: CE Certified; UN38.3/IEC 62109 Report available request upon

B2B value point : The wall-mounted design saves floor space and is suitable for equipment rooms with limited residences in South Asian cities; the 51.2V low-voltage architecture reduces the installation threshold, and local electricians can construct without high-voltage qualifications.For dealers, the 5 kWh and 10 kWh SKUs cover most of the needs from basic lighting to air-conditioning, and have a high inventory turnover efficiency.

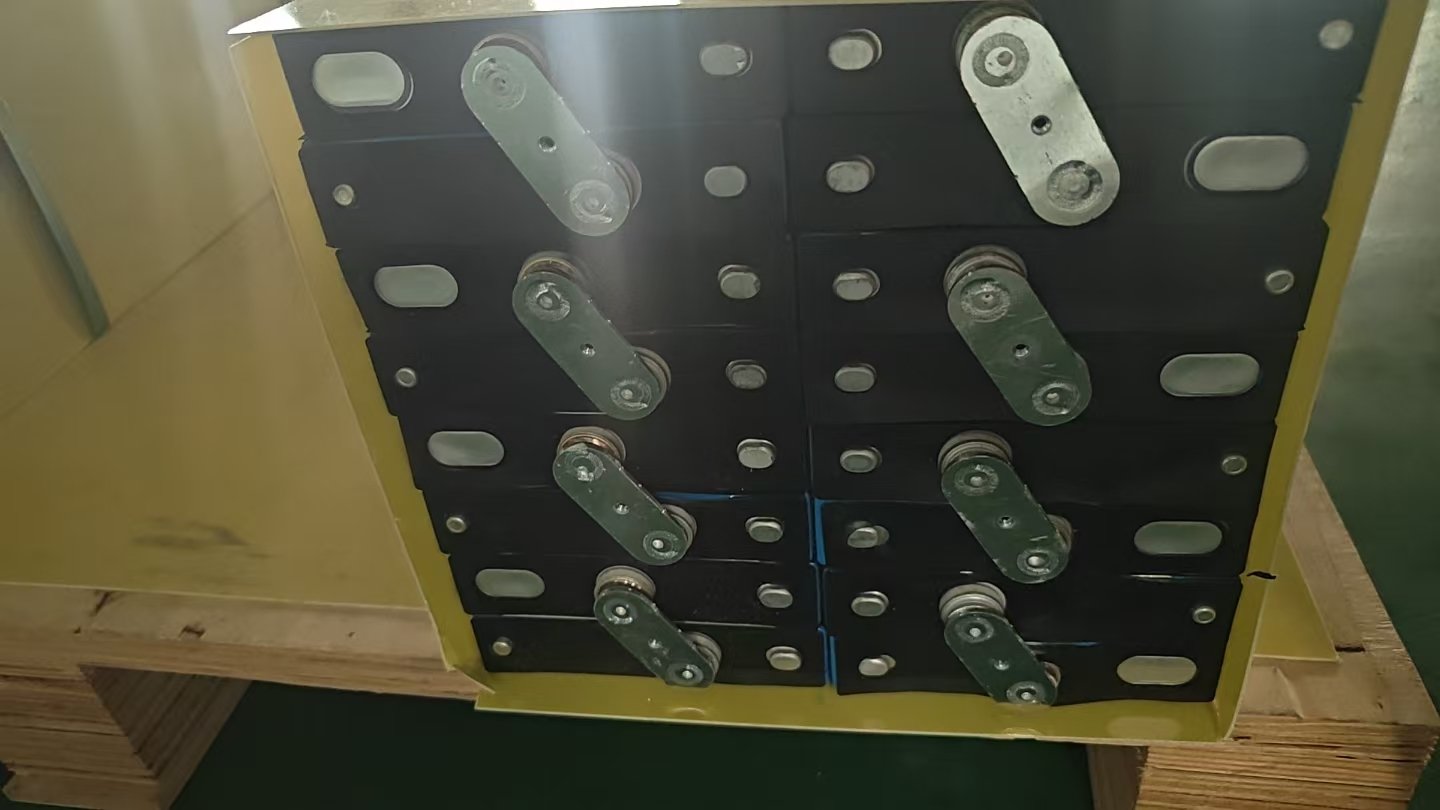

IV. Product solution 2: Stackable 20-64 kWh energy storage system

Adaptation scenario : Chittagong communication base station in Bangladesh, small factory in Lahore, Pakistan, multi-family residential centralized power supply.

Core parameters :

• Capacity range: 20 kWh/40 kWh/64 kWh (modular stacking)
• Chemical system: lithium iron phosphate (LiFePO4)
• Expansion mode: modular stacking, support for later on-demand expansion
• Cycle life: ≥ 6000 cycles (25°C, 0.5C charge/discharge, 80% DoD)
• Certification: CE certified; UN38.3/IEC 62109 report available upon request

B2B value point : The core advantage of stackable architecture is "on-demand investment, gradual expansion".The base station operator can first deploy 20 kWh to meet the current load and superimpose it to 64 kWh as the business grows, avoiding excessive one-time capital expenditure.For installers, modular design reduces on-site construction time and labor costs.

V. ROI and high-temperature environmental precautions

ROI calculation : Take a 10 kWh wall-mounted system in Lahore, Pakistan as an example to replace diesel generator backup.The cost of diesel power generation is about 0.35-0.45 USD/kWh, while the cost of the energy storage system charge-discharge cycle (including electricity charges and depreciation) is about 0.12-0.18 USD/kWh.Based on 1 cycle per day and 330 days of annual operation, the annual electricity savings is about 550-900 USD, and the system investment payback period is about 3-5 years.

High temperature precautions :

• When the ambient temperature exceeds 45°C, it is recommended to install the system in a ventilated shade to avoid direct sunlight;
• The depth of discharge (DoD) is recommended to be controlled within 80% to extend the cycle life;
• Regularly check the BMS temperature protection threshold to ensure that the high temperature reduction strategy is effective.

If you pay attention to the selection logic of frequent power outages and off-grid scenarios in Africa at the same time, you can refer to the [Wall-mounted and stacked lithium iron phosphate energy storage system B2B selection plan] (/uk/solutions/) in the station, and its load list method is interoperable with this plan.

Frequently Asked Questions (FAQ)

Q1: Can the lithium iron phosphate energy storage system still operate at full power at high temperatures of 45°C in Pakistan in summer?

A: It can run, but BMS will drop protection when the set threshold is exceeded.It is recommended to install the system in a ventilated shade and reserve a heat dissipation interval to maintain close proximity to the rated power output.

Q2: Wall-mounted 5 kWh or stacked 20 kWh, which is more suitable for a residence in Dhaka, Bangladesh?

A: Basic lighting and fan standby wall-mounted type 5 kWh; if you need to have air conditioning and standby power for more than 4 hours, it is recommended to have a stackable type 20 kWh, which reserves space for expansion and has a cycle life that better matches the high-frequency power limit.

Q3: Can product certification documents be used for import customs clearance in Pakistan and Bangladesh?

A: CE has been certified, and UN38.3 and IEC 62109 report available upon request, which can cooperate with local importers to complete the preparation of customs clearance and grid-connected compliance documents.

Q4: Is it necessary to replace the inverter for the later expansion of the stacked system?

A: Not required.The stackable type adopts a modular architecture, and the expansion only adds battery modules. The inverter is compatible with the BMS communication protocol, and the inverter specifications at the time of selection shall prevail.

Q5: Do you support B2B wholesale cooperation with OEMs?

A: Yes. We provide wholesale and OEM cooperation for overseas distributors, installers and importers. The currency is the same as the USD quote. The specific terms can be confirmed by contacting the technical team.

Conclusion

The normalization of power limitation in South Asia is not a short-term phenomenon, but a structural opportunity for the energy storage markets of Pakistan and Bangladesh.Two product lines, the wall-mounted 5-10 kWh and the stacked 20-64 kWh, correspond to the two types of target customers of residential shops and base station factories, respectively, with a clear load list and capacity selection logic, which can help local dealers and installers to quickly land projects.For more information on the differences in the selection of off-grid scenarios for Southeast Asian islands, please refer to the relevant program articles on the site.

This article was collated by the Hebei (G2) (Channing Energy) technical team based on the actual deployment experience in South Asia, the product passed the CE certification, UN38.3/IEC 62109 reported available upon request.
