Off grid home energy storage solution for Indonesian islands: 5 kWh wall mounted batteries and 6.2 kW hybrid inverter configuration detailed explanation

Indonesia has over 17000 islands, many of which are remote sea islands that have not yet been connected to the national power grid (PLN) or rely solely on diesel generators to maintain power for limited periods of time. For local households, daily power outages of several hours are the norm, with diesel power generation costs as high as USD 0.25-0.35/kWh, and fuel transportation is difficult. The off grid solution of photovoltaic+energy storage has become the core path for Indonesian island households to achieve stable power supply and long-term cost control. This article is based on the actual deployment experience of Chanming in the Southeast Asian market, and elaborates on the configuration of a 5 kWh wall mounted energy storage battery+6.2 kW hybrid inverter optical storage system for typical households on Indonesian islands.

Why do Indonesian island households need solar storage systems

The power crisis in Indonesian islands has distinct regional characteristics. Taking the Nusa Tenggara and Maluku Islands as examples, a large number of islands rely on small diesel power stations, with a daily power supply time of only 6-10 hours and frequent voltage fluctuations. Diesel power generation is not only expensive, but also accompanied by noise pollution and logistics bottlenecks in fuel transportation - some islands even face the risk of fuel supply interruption during the rainy season.

In terms of photovoltaic resources, Indonesia is located near the equator, with an average annual sunshine duration of over 2200 hours and superior irradiation conditions. A set of 5 kW photovoltaic arrays can generate approximately 18-22 kWh of electricity per day, which is sufficient to meet the daily electricity needs of medium-sized households. After cooperating with the energy storage system, excess electricity generated during the day is stored in the battery, and discharged from the battery at night or on cloudy days, achieving 24-hour stable power supply.

From an economic perspective, the cost per kilowatt hour (LCOE) of solar energy storage systems can be reduced to USD 0.08-0.12/G6, saving over 60% compared to diesel power generation. Calculated based on a 5-year operating cycle, the total investment payback period is usually between 3.5-4.5 years, with a net profit period of more than 10 years thereafter.

Selection and Parameters of System Core Equipment

This plan is built around two core devices: 5 G6 wall mounted energy storage batteries and 6.2 G9 hybrid inverters. The two are perfectly matched in terms of voltage platform, communication protocol, and protection level, and can be plug and play, reducing on-site debugging workload.

5 kWh Wall mounted energy storage battery (51.2V 100 Ah)

The battery adopts a wall mounted design with a thickness of only about 15cm, and can be directly installed on the exterior walls of residential buildings or equipment rooms without occupying indoor floor space. IP65 The protection level ensures long-term stable operation in high humidity and high salt spray environments on islands. The thermal stability of LiFePO4 battery cells is better than that of ternary lithium (NMC), and their safety is higher in tropical high-temperature environments.

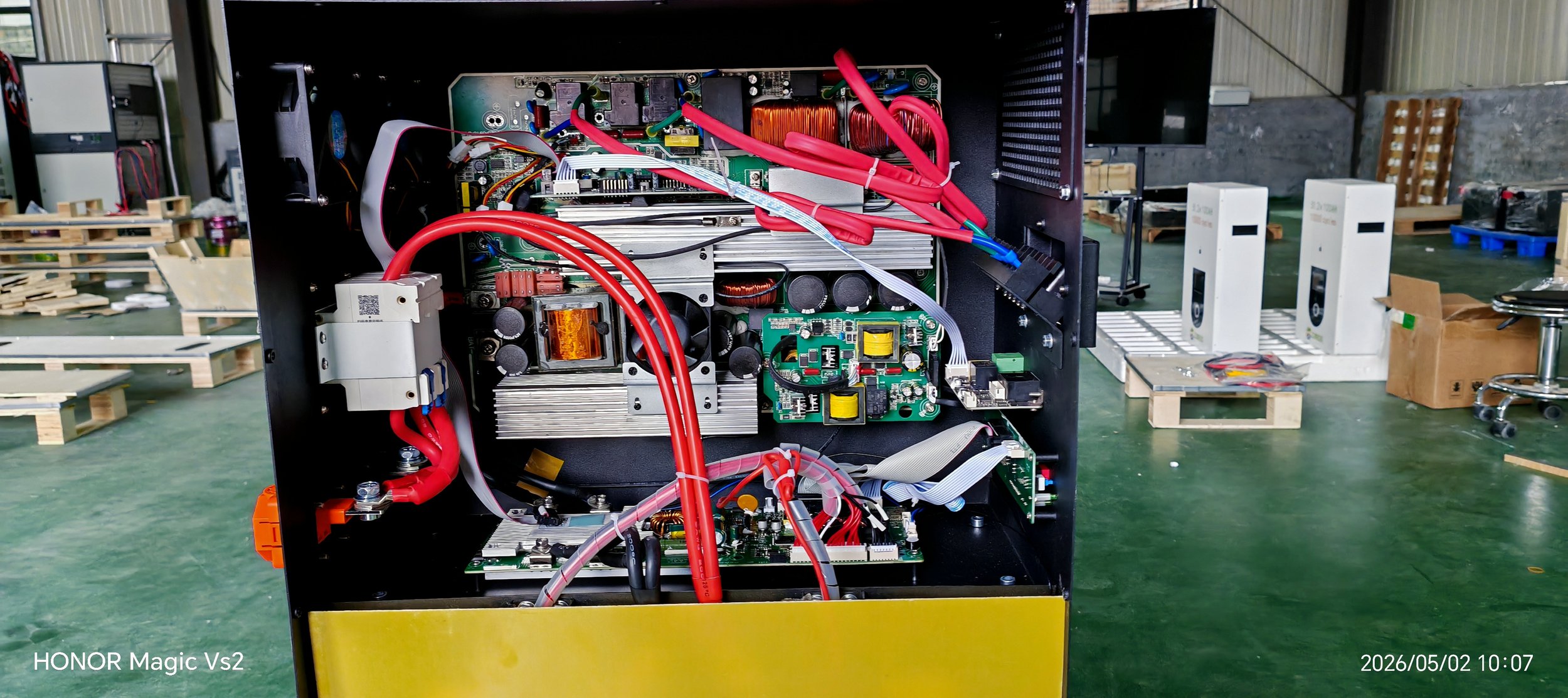

6.2 kW Hybrid Inverter

The hybrid inverter supports the "self use+surplus electricity not connected to the grid" mode, which is suitable for the current situation where net metering policy has not yet been popularized in Indonesian islands. When the mains (or diesel generator) is present, the system can operate in parallel with it; When the mains power is interrupted, the inverter seamlessly switches to off grid mode within 20ms, and the battery continues to supply power to critical loads, with almost no user perception.

Typical household load list and capacity matching

Taking a family of four on an Indonesian island as an example, the daily electricity demand is as follows:

The 5 kWh battery has a usable capacity of 4 kWh at 80% DoD (depth of discharge), which can cover all the electricity needs of the household at night (18:00-6:00 the next day, about 12 hours). During the day, photovoltaics provide direct power and charge the battery simultaneously, forming a closed loop of "photovoltaic direct supply+energy storage backup".

If a household has high-power devices such as air conditioning or washing machines, it is recommended to expand to 10 G6 wall mounted batteries (two in parallel) or introduce a 20-64 G6 stacked energy storage system (/zh/products/stackable 20-64 G6) to achieve longer backup time and greater peak power margin.

System topology and installation points

The typical system topology is: photovoltaic array (5 kW) → 6.2 kW hybrid inverter → AC distribution box → household load; At the same time, the DC side of the inverter is connected to a 5 kWh wall mounted battery. The entire system is an AC coupled architecture, with communication between the battery and inverter via the CAN bus. BMS reports SOC (remaining capacity), SOH (health status), and fault information in real-time.

Installation points:

• Battery installation location: Choose a wall with good ventilation and avoid direct sunlight. The bottom should be at least 30cm above the ground to prevent flooding (rainy season on islands).. Wall mounted brackets require the use of stainless steel expansion bolts to resist salt spray corrosion.
• Inverter installation: Install it on the same or adjacent wall as the battery, shorten the length of the DC cable (recommended ≤ 5m), and reduce line loss.
.
• Grounding protection: The entire system is PE grounded, with a grounding resistance of ≤ 4 Ω. Frequent thunderstorms on islands, it is recommended to install lightning protection devices (SPD) on the AC side of the inverter.
• Tilt angle of photovoltaic array: As the latitude of Indonesia is close to 0 °, it is recommended to install photovoltaic panels horizontally or tilt them slightly at 5-10 ° to balance self-cleaning during rainfall and maximize annual power generation.
.

Investment return calculation

Calculated based on an average daily energy saving of 5 G6 and a cost of replacing diesel power generation of USD 0.30/G6, the annual savings are approximately USD 550. The investment payback period is about 4 years. The battery cycle life is 8000 times (calculated based on one cycle per day, usable for 22 years), the inverter design life is 15 years, and the net profit of the system within 10 years can reach over USD 3000.

Frequently Asked Questions (FAQ)

How long can 5 kWh batteries last in high temperature environments in Indonesia?

The battery cell has a cycle life of about 6000 times at+45 ° C, which still far exceeds the 10-year usage requirement. It is recommended to install the battery in a shaded and ventilated area to avoid direct sunlight that can cause the housing temperature to exceed+55 ° C

Does typhoon season affect system operation?

IP65 Protection level can resist rainstorm and strong wind dust. Photovoltaic brackets need to be designed according to local wind pressure (recommended ≥ 50m/s). Installing inverters and batteries indoors or on leeward walls can further enhance reliability.

How to charge the battery after it is used up?

The system prioritizes daytime photovoltaic power generation for charging. If there is continuous rainy weather for more than 3 days, the backup diesel generator can be started to charge the battery through the inverter as an emergency supplement.

Can this system be expanded?

Okay. 5 kWh wall mounted batteries support up to 16 parallel units (up to 80 kWh), and 6.2 kW inverters can be upgraded to 10 kW or 16 kW reverse control integrated machines. Please refer to our [Reverse Control Integrated Machine Product Series] (/zh/products/hybrid-inverter-10 kW -16 kW) for details.

What certifications are required for exporting to Indonesia?

The Chanming battery has passed the CE certification (IEC 62619/IEC 62040), meeting the equivalent testing requirements of Indonesia's SNI certification. UN38.3 The transportation certification is complete, and it can be safely shipped by sea to ports such as Jakarta and Surabaya.

Conclusion

For Indonesian island households, solar energy storage systems are not only a guarantee of "electricity use", but also a long-term investment to get rid of high cost diesel power generation and achieve energy independence. The combination of 5 kWh wall mounted batteries and 6.2 kW hybrid inverters achieves the best balance between capacity, cost, and reliability, making it a cost-effective entry-level solution for off grid home scenarios in Southeast Asia. If you need capacity selection and quotation based on your specific load list, please contact our technical team through the website form or Wh atsApp.

—

The technical parameters of this article are based on the measured data of Chanming product and the deployment experience in the Indonesian market. Please adjust the specific configuration according to the actual load and on-site conditions.
