Power curtailment scenarios in Pakistan and Bangladesh: In-depth analysis of B2B selection of wall-mounted 5-10 kWh and stacked 20-64 kWh lithium iron phosphate energy storage systems

In Pakistan and Bangladesh in South Asia, load-shedding (planned power cuts) is not an occasional event, but a daily routine scheduled by the hour. Merchants in Karachi, small textile factories in Dhaka, and middle-class households in the suburbs of Lahore all experience power outages, restorations, and power outages again and again on the same power grid curve. For local dealers and installers, the real question is not "whether to equip energy storage", but "how much capacity, what topology to use, and how many years it can last under 50°C high temperatures and frequent power outage cycles." Based on our actual deployment experience in the South Asian market, this article provides practical engineering selection logic around two lithium iron phosphate energy storage systems: wall-mounted 5-10 kWh and stacked 20-64 kWh.

Why the load-shedding scenario is different from ordinary backup power supply

The load characteristics of power curtailment scenarios are completely different from "occasional power outages" in Europe and the United States: 4-8 power outage cycles may be experienced every day, with a single duration of 1-4 hours, and the power outage time highly overlaps with the peak power consumption. This means that the energy storage system must meet three engineering conditions at the same time - high-frequency shallow charge-discharge cycle capability, capacity retention rate in high-temperature environments, and communication stability between the inverter and the battery.

Taking the lithium iron phosphate (LFP) chemical system as an example, its cycle life is usually rated at more than 4,000 times under conditions of 80% DoD and 25°C. However, the temperature inside the battery compartment in South Asia in summer often reaches 40-50°C, and the actual available cycle life will be discounted. When selecting, you should not just look at the nominal rating kWh, but also the high-temperature derating strategy and thermal management design of BMS. This is also a point we have repeatedly emphasized in our projects in Pakistan and Bangladesh: the first step in capacity selection is to calculate the load list, and the second step is to calculate the temperature correction coefficient.

Wall-mounted 5-10 kWh: The main solution for high-frequency power limitation for small and medium-sized businesses and households

The wall-mounted energy storage battery uses a 51.2V lithium iron phosphate system, with a capacity covering 5-10 kWh. Wall-mounted installation does not occupy floor space, and is particularly suitable for urban commercial scenarios such as Karachi and Dhaka where store space is tight and walls are available. Typical load lists include: LED lighting and fans (300-600W), refrigerators or small freezers (200-400W), routers and POS equipment (100W), and a 1-1.5 HP inverter air conditioner (900-1200W).

Taking version 10 kWh as an example, 8 kWh can be used based on 80% DoD. If the basic load of 600W is maintained during the power limit, it can support about 13 hours; if air conditioning is added, it will last about 4-5 hours, which just covers a typical load-shedding window. For installers, the value of the wall-mounted type lies in its short installation time and convenient parallel expansion. Multiple units connected in parallel can cover 20 kWh level requirements, making it suitable as a standardized "one household, one policy" product package.

It should be reminded that the protection level and installation height of the wall-mounted system directly affect its lifespan in the high-humidity environment along the coast of Bangladesh. We recommend that the installer arrange the battery compartment on a ventilated and cool wall to avoid western exposure, and enable high temperature derating protection in the BMS parameter.

Stacked 20-64 kWh: Capacity solution for small industries, communication base stations and multi-family sharing

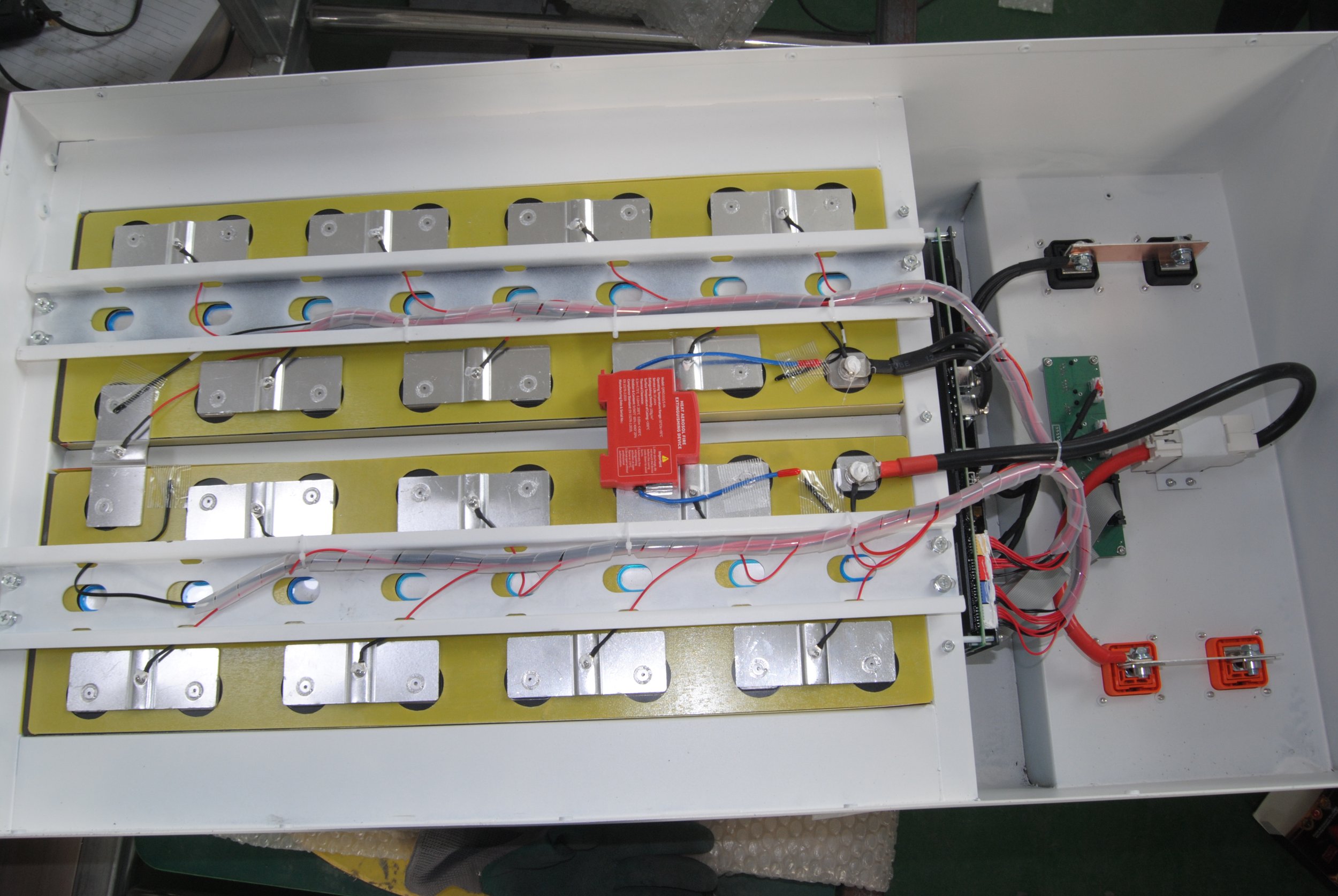

When the load list exceeds 15 kWh/day, or when it is necessary to provide power for communication base stations, small textile workshops, or multi-household sharing, the stacked energy storage system 20-64 kWh is a more suitable topology. The modular stacking design allows dealers to expand the capacity on site according to the project, starting from 20 kWh and gradually increasing it to 64 kWh, reducing the pressure on inventory SKUs - this is especially important for importers in Lahore and Chittagong, as one product covers multiple capacity segments.

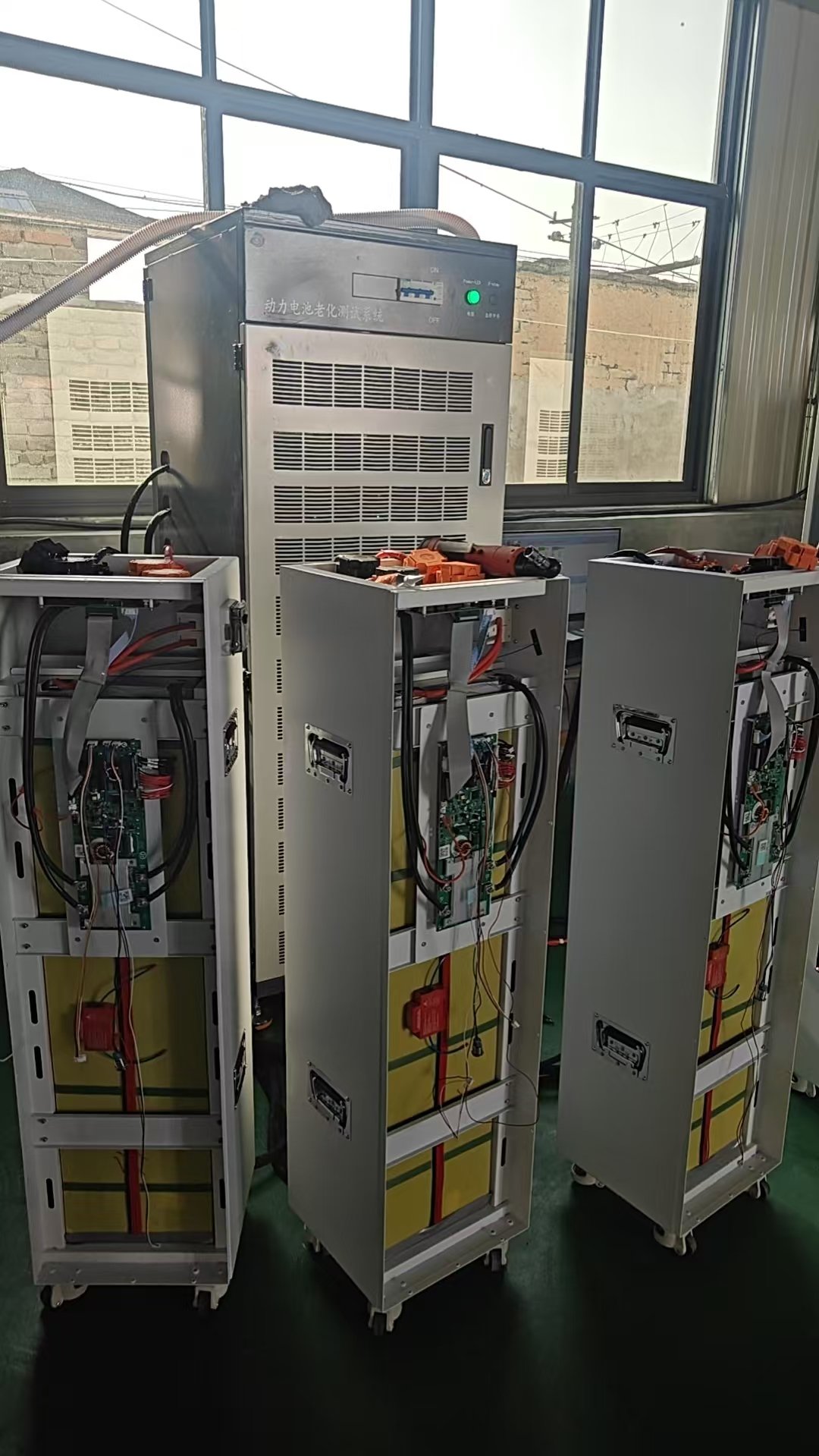

The engineering key points of the stacked system are: first, the current sharing between modules and the BMS master-slave communication must be stable, otherwise single module over-discharge will easily occur during high current discharge; second, the design of the cabinet cooling air duct determines the continuous output capability under high temperatures; third, the protocol compatibility with the hybrid inverter must be confirmed before shipment to avoid on-site debugging and rework. The integrated inverter and control machine (hybrid inverter + integrated control) we provide can be matched with the stacked system to reduce the installer's on-site matching workload.

Core parameter comparison and selection table

The following parameters are based on the product data summary range, and the actual configuration is subject to project confirmation.

High temperature and cycle life: Three engineering truths deployed in South Asia

First, nominal cycle life is not equal to field life. In an environment above 40°C, the capacity attenuation of LFP is significantly accelerated. When selecting, the supplier should be required to provide high-temperature cycle data and set temperature-linked derating in BMS. Second, DoD settings must be restrained. Running 95% DoD for a long time in pursuit of "nominal usable capacity" will significantly shorten the cycle life. We recommend that commercial scenarios be planned at 80% DoD. Third, the communication protocol affects the experience more than the battery brand. If the CAN/RS485 protocol between the hybrid inverter and the battery BMS is not well matched, frequent alarms and shutdowns will occur, which is fatal in high-frequency power-limiting scenarios.

For similar selection logic in Southeast Asian islands and high electricity price scenarios, you can refer to the [B2B selection plan for wall-mounted and stacked lithium iron phosphate energy storage systems] (/zh/solutions/) that we have compiled previously. The discussion of high-temperature derating and parallel expansion is also applicable to South Asia. If your project is located in a market with more severe power grid fluctuations, you can also refer to the load list method in [B2B Insights on Wall-mounted and Stackable Systems in Yemen and Iraq Markets](/zh/solutions/).

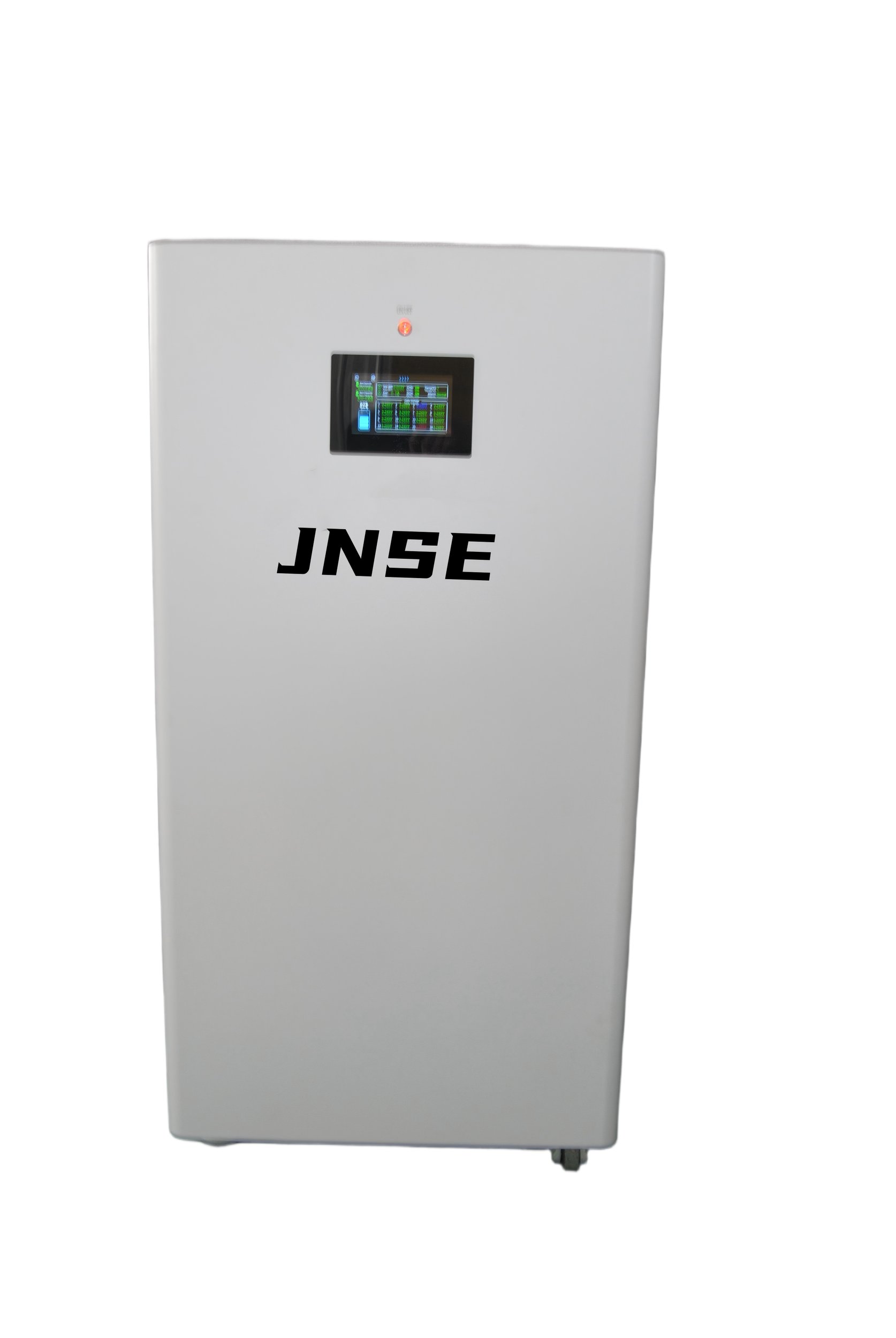

Key points of certification compliance and B2B delivery

For importers from Pakistan and Bangladesh, compliance documents are a prerequisite for customs clearance and project acceptance. Our products have obtained CE certification, UN38.3 transportation report and IEC 62109 safety report available upon request and can be attached during the quotation stage. For dealers, it is recommended to clarify in the contract: the agreement compatibility list of batteries and inverters, the proportion of spare parts, and the boundaries of high-temperature environment warranty terms. These details affect long-term ROI more than unit price.

If you need to understand the general selection framework for the frequent power outage market, you can refer to [Three engineering truths about off-grid energy storage selection in Nigeria/Kenya/Ghana](/zh/solutions/), where the load list template can be directly reused in South Asia projects.

Frequently Asked Questions (FAQ)

Q1: Pakistan has power cuts many times a day. Is the wall-mounted 10kWh enough?

A: Depends on the load list. If lighting, fans, refrigerators and network equipment are mainly used (about 600W), 10 kWh can cover about 13 hours at 80% DoD; if air conditioners are superimposed, it is recommended to plan according to 4-5 hours, or connect a second unit in parallel for capacity expansion.

Q2: Can the stacked 20-64 kWh be expanded later?

A: Yes. The modular stacking design supports adding modules according to project requirements starting from 20 kWh. However, when expanding the capacity, it is necessary to confirm that the BMS master and slave versions are consistent, and the installer must review the flow sharing and cooling air ducts.

Q3: How to evaluate the cycle life of lithium iron phosphate system in high temperature environment?

A: The supplier should be required to provide high temperature cycle data above 40°C and enable temperature derating in BMS. In commercial scenarios, it is recommended to operate at 80% DoD to avoid long-term full discharge to extend life.

Q4: Can product certification meet Bangladesh customs clearance requirements?

A: The product has CE certification. UN38.3 and IEC 62109 reports are available upon request and can be provided during the quotation stage. It is recommended that importers confirm the document list with the local customs clearance agent in advance.

Q5: How to quickly select between wall-mounted and stacked models?

A: Daily power consumption is 3-10kWh. For home shops, choose the wall-mounted 5-10kWh; for daily power consumption of 15-50kWh, if it involves small industry or communication base stations, choose the stacked 20-64kWh, and it is equipped with an inverse control integrated machine to reduce on-site matching.

Conclusion

In the daily load-shedding in Pakistan and Bangladesh, the core of energy storage selection is not the reactor capacity, but the clear calculation of load list, temperature correction, DoD strategy and BMS agreement. The wall-mounted 5-10 kWh solves high-frequency small and medium loads, and the stacked 20-64 kWh meets the needs of small industries and base stations. The two can be combined with the inverse control all-in-one machine to form a replicable B2B product package. The parameters and selection logic in this article were compiled by the technical team of Hebei Chanming New Energy (CHANMING Energy) based on actual deployment experience in the South Asian market, for reference by overseas dealers and installers.
