Energy storage options under high temperature and grid fluctuations: B2B insights for wall-mounted and stacked lithium iron phosphate systems in Yemen and Iraq

In residential areas of Sana 'a, Yemen, power outages of up to 8-12 hours a day are the norm; in Baghdad, Iraq, the summer heat of 50°C alternates with voltage dips to test every household's power system.For local B2B dealers and installers, high-temperature energy storage systems are no longer “alternatives” but are just needed.Based on the actual deployment experience in the Middle East market, Hebei Chanming New Energy (CHANMING Energy) combed the selection logic of wall-mounted 5-10 kWh and stacked 20-64 kWh lithium iron phosphate systems from load list, capacity selection, cycle life to BMS protocol compatibility to help overseas buyers make landable purchasing decisions in extreme environments.

Yemen and Iraq: Why won't ordinary energy storage batteries last three years?

In Yemen and Iraq, energy storage systems face three challenges: persistent high temperatures, sharp fluctuations in grid voltages, and frequent deep discharges .The cycle life of ordinary ternary lithium batteries above 45°C decays sharply, while local users tend to discharge the batteries below 10% to recharge, further accelerating aging.

Lithium iron phosphate (LiFePO4) chemical system has obvious advantages in this scenario: higher thermal stability, thermal runaway temperature threshold can reach above 270°C, far superior to 150-200°C for lithium ternate.Chanming New Energy 's wall-mounted and stackable systems use lithium iron phosphate batteries, with smart BMS, can maintain a stable output at 50°C ambient temperature, and the design cycle life is more than 6,000 times (80% DoD, 25°C conditions). Even after high temperature attenuation correction, it can cover the daily use needs of users in Yemen and Iraq for 5-8 years.

For dealers, this means lower after-sales repair rates and more stable customer reputation.We have provided ODM/OEM support for multiple off-grid and grid-connected mixed scenarios in the Middle East. The products have passed CE certification, UN38.3 and IEC 62109 reported available upon request.

Wall-mounted 5-10 kWh: A compact solution for urban apartments and small shops in Yemen

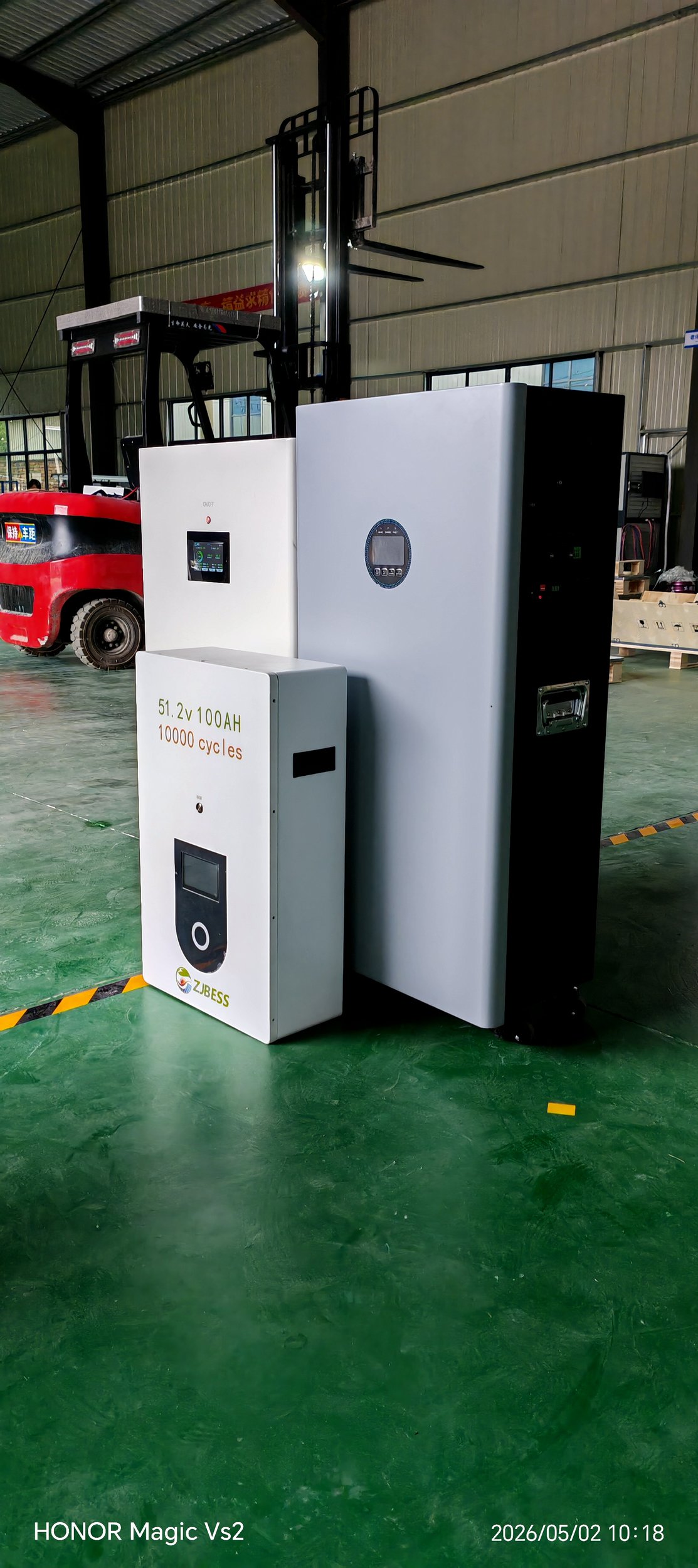

In cities such as Sana 'a and Aden, Yemen, where space for apartments and small shops is limited, wall-mounted installations are preferred.Chanming New Energy Wall-mounted energy storage battery capacity covers 5-10 kWh, nominal voltage 51.2V, using lithium iron phosphate battery, supporting wall-mounted or floor-mounted installation, compact thickness, suitable for corridors, equipment rooms or shop back walls.

Typical load lists (taking 10 kWh systems as an example):

• LED lighting x 10: about 100W
• Ceiling fans x 3: about 225W
• Fridge x 1: about 150W (intermittent operation)
• TV + router: about 120W
• Mobile phone charging x 5: about 50W
• Total continuous load about 645W, 10 kWh The system can support about 12-14 hours (considering DoD 80% and inverter efficiency)

For shop users in Baghdad, Iraq, the wall-mounted system can be used with a hybrid inverter to realize the switching logic of municipal power priority and energy storage backup, and automatically switch to battery power supply when the power grid fluctuates to avoid the loss of the cash register system and freezer due to power failure.

Stackable 20-64 kWh: Modular Options for Large and Medium-Sized Residential and Commercial Standby in Iraq

Stackable energy storage systems are more suitable for large homes, small clinics, or communication base stations in Mosul, Erbil, and other places in Iraq.Chanming New Energy The stackable system capacity starts from 20 kWh and can be expanded to 64 kWh. With a modular stacking design, single-module maintenance and replacement are convenient, and the capacity can be expanded without professional tools.

Overview of key parameters:

In the high-temperature scenario in Iraq, the module spacing design of the stacked system is conducive to heat dissipation, and the active equalization function of BMS can reduce the overall derating due to single module overheating.For installers, prefabricated cables and plug-and-play connectors for stackable systems can reduce on-site installation time by about 30% -40%, which is especially important in urban areas where labor costs are high.

Capacity selection and ROI: Decision-making framework for B2B buyers in Yemen and Iraq

The selection is not the bigger the better, but to match the load curve with the power outage duration.We recommend that B2B buyers measure as follows:

1. Statistics average daily power consumption (kWh) : List the power and service life of all critical loads, and take the sum.
2. Confirmation of maximum power outage duration : Yemeni urban areas typically have 8-12 hours, and Iraqi summer peaks can be as high as 14 hours.
3. Calculate the required capacity : Average daily power consumption ÷ 0.8 (DoD) ÷ 0.9 (inverter efficiency) × 1.2 (high temperature attenuation margin).
4. Matching product : If the calculation result is ≤ 10 kWh, select the wall-mounted type; if it is in the 20-64 kWh range, select the stacked type.

ROI reference (Iraqi shops as an example):

• 10 kWh Wall-mounted system + BMS + Hybrid inverter, B2B procurement cost about 1,800-2,500 USD
• Alternative diesel generator: Diesel generator average daily fuel cost about 8-12 USD, maintenance fee additionally
• Static payback period about 12-18 months (estimated at 10 hours of power outage per day, diesel price 0.8-1.0 USD/L)

For Yemeni dealers, bulk purchases can further dilute logistics and tariff costs.We support fob/CIF terms with English/Arabic technical documentation and installation manuals to help local teams get started quickly.

Frequently Asked Questions (FAQ)

Q1: Will lithium iron phosphate batteries bulge at 50°C in Yemen?

A: Not for normal use.Lithium iron phosphate has high thermal stability and can be operated stably below 55°C with BMS over-temperature protection.It is recommended to avoid direct sunlight and maintain ventilation spacing when installing.

Q2: Can the wall-mounted 5-10 kWh system power the air conditioning?

A: It can drive 1-1.5 inverter air conditioners (about 800-1200W), but the total load needs to be calculated.If the air conditioner is running at the same time as the refrigerator and lighting, it is recommended to select a system of 10 kWh or more or a stacked system.

Q3: Can stackable systems be later expanded?

A: Yes. The modular design supports a gradual expansion from 20 kWh to 64 kWh, simply adding modules and updating the BMS configuration without replacing the mainframe.

Q4: Does the product support communication with local hybrid inverters?

A: Support can/RS485 protocol, compatible with mainstream brand hybrid inverters.Please provide the inverter model before purchasing, we can confirm the protocol match.

Q5: How do I obtain delivery and certification documents for B2B purchases?

A: Regular order delivery time is about 25-35 days, CE certificate is provided with the goods, UN38.3 and IEC 62109 reports can be sent on request.Batch orders support customized nameplates and packaging.

Conclusion

The power woes in Yemen and Iraq are not going away anytime soon, but choosing the right storage system could allow dealers and installers to build competitive barriers to high temperatures and grid fluctuations.Chanming New Energy Focused on the B2B supply of lithium iron phosphate energy storage systems, the wall-mounted 5-10 kWh and stackable 20-64 kWh product lines cover a variety of scenarios from apartments to commercial backup.If you are looking for a stable, scalable and certified energy storage solution for the Middle East market, please contact us for selection support and bulk quotes.

This article was compiled by Hebei (G2) (Channing Energy) technical team based on the actual deployment experience in the Middle East market, the product passed CE certification, UN38.3 and IEC 62109 reported available upon request.
