Frequent power outages and off-grid scenarios in Africa: B2B selection guide for wall-mounted and stacked lithium iron phosphate energy storage systems

In commercial districts of Lagos, Nigeria, suburban homes in Nairobi, Kenya, and small processing plants in Accra, Ghana, power grid outages of 4–12 hours per day have become the norm.For local dealers, installers and importers, lithium iron phosphate energy storage systems are no longer a "backup option", but a core infrastructure that supports store refrigerators, communication base stations, clinic lighting and home base loads.Based on our practical deployment experience in many countries in Africa, this paper gives a B2B selection framework that can be implemented around two product lines: wall-mounted 5–10 kWh and stacked 20–64 kWh.

Why African off-grid scenarios are better suited to lithium iron phosphate (LiFePO4)

Lead-acid batteries generally have a cycle life of only 300–500 cycles at high temperatures, while lithium iron phosphate can maintain more than 3,000 cycles at temperatures above 35°C (80% DoD, tested at 25°C nominal conditions).Considering that the coastal areas of Nigeria and Ghana are 30-38°C year-round, the replacement cost of the lead-acid solution will exceed the initial investment of lithium iron phosphate in 3 years.

From a B2B perspective, two other advantages of lithium iron phosphate are more critical:

• BMS Communication protocol open : Mainstream brands support can/RS485, which can communicate directly with the hybrid inverter (inverter integrated machine) to reduce on-site commissioning time.
• Transport Compliance : UN38.3 Reporting available upon request, in conjunction with CE certification, enables smooth customs clearance into major ports in West and East Africa.

Wall-mounted 5–10 kWh: Preferred for shop and home base loads

Wall-mounted energy storage batteries (51.2V lithium iron phosphate) cover 5 kWh, 7.5 kWh, and 10 kWh capacity grades, which are the most commonly purchased specifications for urban shops and middle- and high-income households in Nigeria and Kenya.

Typical load list (take 10 kWh as an example)

10 kWh The system has an available capacity of about 8 kWh at 80% DoD, which can cover the above load and leave 1 day of rain backup redundancy.If the customer needs to drive a 1HP pump or small refrigerator, it is recommended to upgrade to a stacked solution.

Wall-mounted product parameter reference

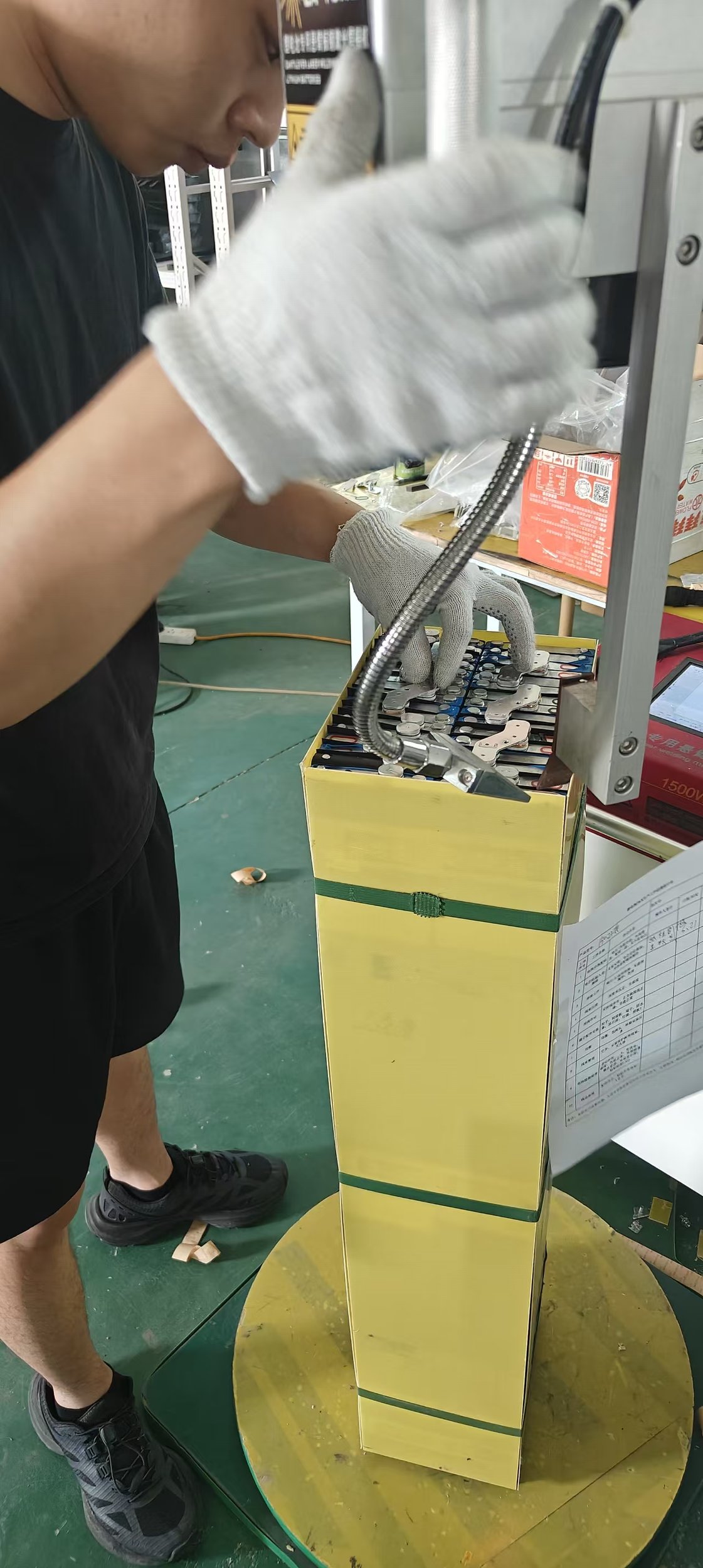

Stackable 20–64 kWh: Expansion plans for processing plants, base stations and clinics

The stacked energy storage system (20 kWh/30 kWh/40 kWh/64 kWh) is a more reasonable architecture when the load exceeds 8 kWh/day, or when the customer needs a 3-phase output to drive the motor-type load.Modular stacking design allows dealers to flexibly configure on order, reducing inventory pressure.

Application and target customers

• Small and medium-sized processing plant in Accra, Ghana : drives 2–3 1.5 kW motors + lighting, consumes 25–40 kWh per day.
• Nigeria Communications Base Station : Replacement of diesel generator to achieve 24h power supply with inverter.
• Kenyan rural clinics : Vaccine refrigerators + lighting + diagnostic equipment, requiring high reliability.

Reference for stacked product parameters

Inverse control all-in-one: the "brain" of the off-grid system

In most off-grid projects in Africa, customers do not need to purchase inverters and controllers separately.The inverter integrated machine (hybrid inverter + integrated control) can directly communicate with wall-mounted or stacked batteries through can to achieve automatic switching of mains/photovoltaic/battery.Confirm when selecting:

1. Inverter rated power ≥ load peak power × 1.2;
2. Supports battery BMS protocol matching (battery model available before ordering);
3. MPPT Input voltage range matches local PV string design.

Selection decision table: 5-minute lockdown scheme

For the design of capacity attenuation and heat dissipation in high-temperature environments, please refer to our previously released [Guidelines for Energy Storage Selection in High-Temperature Grid Unstable Scenarios in the Middle East] (/uk/solutions/), in which the discussion on DoD settings for environments above 35°C is also applicable to coastal areas in West Africa.

Frequently Asked Questions (FAQ)

Q1: In Nigeria's frequent power outages, is 5 kWh wall-mounted enough?

A: If only lighting, fans, TVs and routers are driven, the daily power consumption is about 3–4 kWh, 5 kWh The system can be used at 80% DoD, about 4 kWh, which is basically enough; but it is recommended to reserve 1 day for redundancy, 7.5 kWh is more secure.

Q2: How much does lithium iron phosphate shorten its environmental cycle life above 35°C?

A: nominal more than 3000 times at 25°C; long-term operation at 35–40°C, life is usually reduced by 15–25%.It is recommended to install in a ventilated and shady place, and avoid direct sunlight at noon.

Q3: Can stackable systems be expanded later?

A: Yes. The modular stacking design supports a gradual expansion from 20 kWh to 64 kWh. When expanding the capacity, ensure that the new and old module voltages are consistent with the BMS firmware version. Please confirm the compatibility with the supplier before placing an order.

Q4: What certifications are required for products to enter the African market?

A: CE has been certified; UN38.3 and IEC 62109 report available upon request, can cooperate with importers to complete customs clearance and grid-connected compliance review.

Q5: Can wall-mounted and stackable be mixed?

A: Yes, but it needs to be managed through the same inverse control all-in-one computer, and it is recommended to agree with the brand.Before mixing, please provide the mutual BMS agreement document, and the technical team will confirm the compatibility.

Conclusion

Energy storage selection for off-grid and frequent power outage scenarios in Africa, the core is a four-step closed-loop "load list → daily power consumption → capacity → inverter matching".The wall-mounted 5–10 kWh covers urban shops and home base loads, and the stackable 20–64 kWh supports processing plants, base stations, and clinic-level applications.As a supplier of lithium iron phosphate energy storage systems for overseas B2B wholesale, Hebei Chanming New Energy (changing Energy) provides CE certified products and UN38.3/IEC 62109 technical support documents for dealers, installers and importers.For project-specific selection suggestions for Nigeria, Kenya, and Ghana, please contact our technical team for a load-matching form and quote proposal.

This article was compiled by the Hebei (G2) (Channing Energy) technical team based on practical deployment experience in multiple countries in Africa.
