Middle East high-temperature grid instability scenarios: B2B selection guide for wall-mounted and stacked lithium iron phosphate energy storage systems in the Yemeni and Iraqi markets

In Yemen and Iraq, power grid instability is not an accident, but a daily occurrence.In summer, the ambient temperature has exceeded 45°C for a long time, and the average daily power supply time of the mains electricity is less than 8 hours in some areas. Diesel generators are still a pocket power source for a large number of businesses and residences.For local dealers, installers and importers, energy storage systems are no longer a "backup option", but just infrastructure.Based on our practical deployment experience in high-temperature and low-grid scenarios in the Middle East, this paper disassembles the selection logic of lithium iron phosphate energy storage batteries , focusing on two product lines, wall-mounted 5-10 kWh and stackable 20-64 kWh, to help B2B buyers establish a landable procurement and configuration framework.

High temperature and weak grid: two hard constraints on energy storage selection in the Middle East

The energy storage options in the Yemeni and Iraqi markets cannot replicate the European or Southeast Asian options, and the core difference comes from two hard constraints.

The first is heat. When the ambient temperature exceeds 45°C, the cycle life of ordinary lithium batteries will be significantly reduced. If BMS does not have a high temperature drop and active equalization strategy, the cell consistency will deteriorate rapidly.Lithium iron phosphate (LiFePO4) itself has better thermal stability than lithium ternate, but system-level thermal design, cell spacing, and BMS temperature sampling accuracy are the keys to determining actual life.

The second is the weak power grid. High voltage fluctuations, frequency drift, frequent power outages and restoration put forward high requirements for the off-grid switching logic of the inverse control all-in-one machine.If the switching time is too long, the load will lose power, and if the switching logic is rough, it may cause reverse shock.For merchant scenarios, loads such as cash registers, cold chains, and communication base stations are extremely sensitive to power supply continuity.

The superposition of these two constraints means that when selecting a model, it is not only the nominal capacity, but also the usable capacity at high temperatures, the cycle life and DoD strategy , and the switching and protection capabilities of the inverter.

Wall-mounted 5-10 kWh: Main configuration of small businesses and houses in Yemen and Iraq

Wall-mounted energy storage batteries 5-10 kWh (51.2V lithium iron phosphate) are one of the largest categories in terms of shipments in the Middle East market, with clear applicable scenarios: small shops, communication nodes, clinics, and residential basic loads.

Typical load list (taking 5 kWh system as an example):

According to the DoD 80% calculation, the 5 kWh system is actually available for about 4 kWh. To cover the above loads, configure 6-7 kWh, or prioritize the loads.This is the most error-prone area when planning for an end customer - the nominal capacity is not equal to the usable capacity, and the usable capacity is not equal to the payload .

Selection points:

• Cycle life: Under the conditions of 25°C and 0.5°C charging and discharging, high-quality lithium iron phosphate batteries can reach more than 6,000 times; however, the attenuation curve under high temperature conditions needs to be obtained from the supplier, rather than just looking at the normal temperature data.
• BMS Protocol: Mainstream inverter brands' can/RS485 communication protocols need to be supported to avoid repeated debugging during integration.
• Installation method: Wall-mounted to save space, but it is necessary to confirm the gap between the load-bearing and heat dissipation of the wall, and it is recommended to reserve a larger ventilation distance in the high temperature environment in the Middle East.

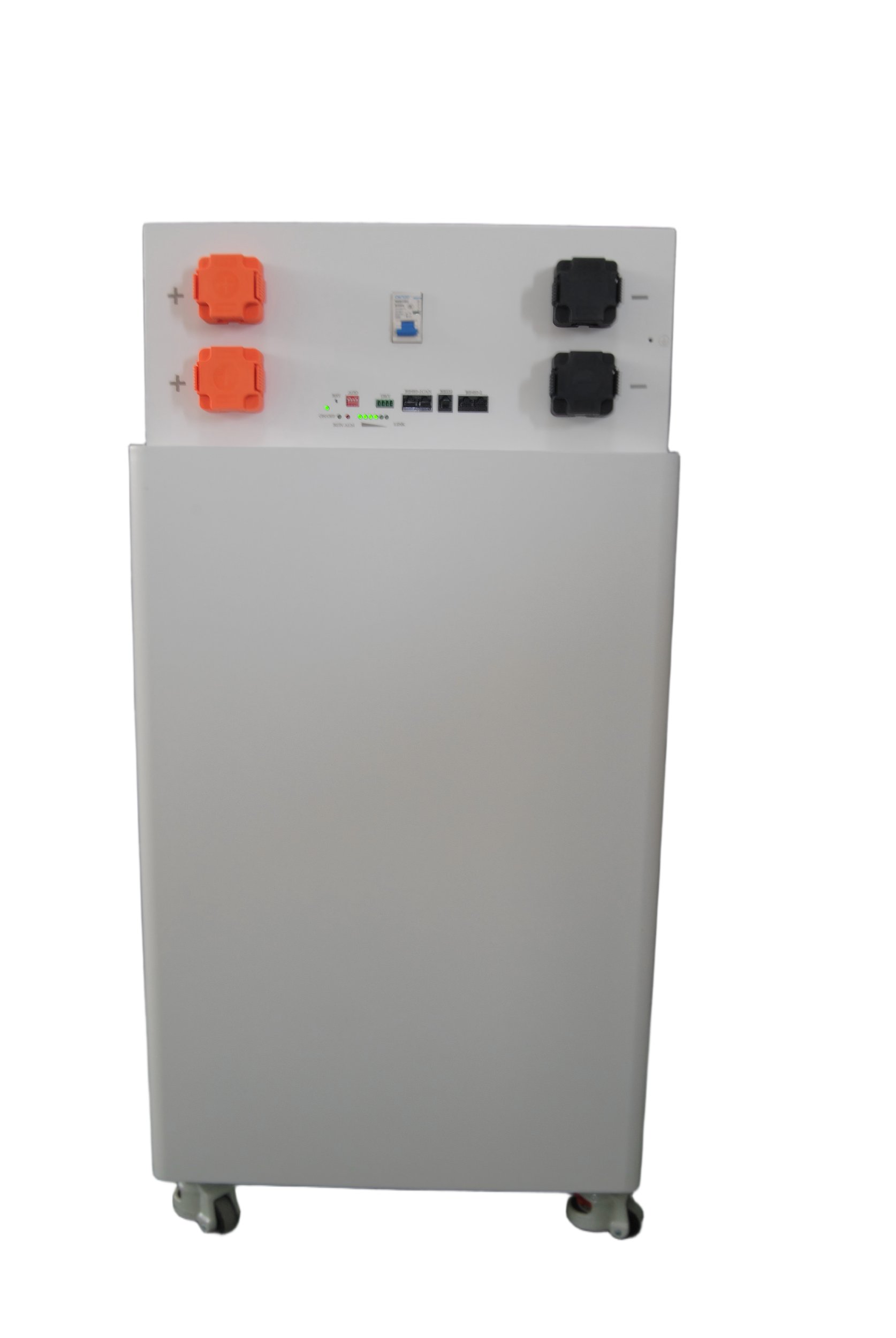

Stackable 20-64 kWh: Scaling Solutions for Iraqi Merchants and Off-grid Nodes

When the load rises to the cold chain, multiple air conditioners, small production lines, or the entire building, the wall-mounted capacity is insufficient, and the stacked energy storage system 20-64 kWh becomes the main force.With electricity demand at 30-50 kWh per day in some parts of Iraq, the stacked modular design allows for on-demand capacity expansion, which means a more flexible inventory strategy for dealers - no need to press the full-capacity segment at once.

Stacked system parameter reference (based on product data summary scope):

Expansion logic suggestion: For Iraqi merchant scenarios, it is recommended to design according to the "base load + delayable load" tier.The basic load (lighting, communication, cashier) is guaranteed by the 20 kWh module, which can delay the load (air conditioning, refrigeration) when the photovoltaic output is sufficient, and cut it off according to the priority when it is insufficient.This strategy can control the ROI within a reasonable range without infinite expansion.

Inverse control all-in-one machine: key to the integration of weak grid scenarios

In the Middle East weak grid scenario, the value of the inverse control all-in-one machine (hybrid inverter + control all-in-one) is amplified.It determines the scheduling logic between mains electricity, photovoltaics, batteries, and loads.Selection needs to focus on:

• And off-grid switching time : The shorter the better, the more sensitive the merchant load is to power loss.
• Wide voltage input range : Responding to large voltage fluctuations common in Yemen and Iraq.
• Photovoltaic access capacity : Photovoltaic output in high-temperature areas is sufficient, and MPPT efficiency directly affects daily power generation.
• Protection strategy : Over-voltage, under-voltage, over-temperature, whether the reverse connection protection is complete.

For B2B buyers, it is recommended that the inverse control all-in-one machine and the battery system be evaluated as an overall solution, rather than purchased separately.System-level matching can significantly reduce on-site commissioning costs and after-sales risks.

B2B procurement compliance and certification points

For energy storage products for the Middle East market, compliance is the entry barrier.Current product lines CE are certified , UN38.3 and IEC 62109 report available upon request .For importers, note:

• IEC 62109 is a general safety requirement for photovoltaic inverters, and the export of inverter all-in-one machines needs to be checked.
• UN38.3 is a mandatory test for lithium battery transportation, which directly affects the feasibility of shipping and air transportation. Lack of this report will lead to logistics hindrance.
• CE Covers EU market access while being used as a quality reference in multiple Middle Eastern markets.

It is recommended to request the complete report list and validity period from the supplier at the inquiry stage to avoid obstacles to customs clearance after arrival in Hong Kong.Relevant selection methods can also refer to our previously published [Guide to Selection of Energy Storage Systems for High-temperature Grid Unstable Scenarios in the Middle East] (/uk/solutions/), as well as configuration ideas for [frequent power outages and off-grid scenarios in Africa] (/uk/solutions/), which have similarities in weak grid logic.

Frequently Asked Questions

Q1: How long will the life of the lithium iron phosphate energy storage system be shortened in the high temperature environment in Yemen?

A: Continuous operation above 45°C will accelerate the attenuation, depending on the heat dissipation design and BMS strategy.It is recommended to obtain a high-temperature condition attenuation curve and reserve ventilation gaps to generally keep the life impact within an acceptable range.

Q2: How to choose between wall-mounted 5-10 kWh and stacked 20-64 kWh?

A: Judged by daily power consumption.If the daily consumption is 5 kWh or less, the wall-mounted type may be selected, and if the daily consumption exceeds 15 kWh, the stacked type may need to be expanded.The stackable modular design is more suitable for the phased expansion needs of Iraqi merchants.

Q3: What certifications are required to export to Iraq?

A: CE is certified, UN38.3 and IEC 62109 report available upon request.UN38.3 Directly affects the feasibility of transportation, it is recommended to confirm the validity period of the report when inquiring.

Q4: Can the inverse control all-in-one machine be mixed with batteries of different brands?

A: It is technically feasible, but it is necessary to confirm that the BMS communication protocol is compatible (can/RS485).Mixing increases debugging costs, and it is recommended to prioritize system-level matching schemes.

Q5: What is the minimum order quantity and delivery time for B2B wholesale?

A: The specific minimum order quantity and delivery date depend on the product model and destination port. It is recommended to contact the sales team directly for quotations and scheduling plans.

Conclusion

The energy storage needs of Yemen and Iraq are essentially rigid needs under the dual constraints of high temperature and weak grid.For B2B buyers, the core of selection is not to pursue the maximum number on the parameter table, but to find a system solution that matches the local load, climate, and grid conditions.The wall-mounted 5-10 kWh covers small businesses and residences, and the stacked 20-64 kWh undertakes the expansion of merchants and off-grid nodes, and forms a complete closed loop with the inverse control all-in-one machine.Certification compliance is the barrier to entry, and high-temperature reliability is a long-term reputation.

This article was written by the technical team of Hebei (G2) (changing Energy), based on the actual deployment experience in the Middle East market, and the product parameters are based on official data.
