Frequent power outages and off-grid scenarios in Africa: Nigeria/Kenya/Ghana wall-mounted and stacked lithium iron phosphate energy storage system B2B selection plan

In the business district of Lagos, Nigeria, the communication base station in Nairobi, Kenya, and the off-grid clinic in Accra, Ghana, it is normal to experience planned power cuts or sudden power outages ranging from 4 to 12 hours a day. For local dealers, installers and importers, a reliable lithium iron phosphate energy storage system is no longer a "backup option", but a core infrastructure that supports continuous business operations. Based on our actual deployment experience in the West and East African markets, this article provides a feasible B2B selection framework around the two product lines of wall-mounted energy storage battery 5-10 kWh (51.2V lithium iron phosphate) and stacked energy storage system 20-64 kWh.

Why do the markets in Nigeria, Kenya, and Ghana need lithium iron phosphate energy storage systems?

The common pain points of the three markets are low grid availability, high diesel power generation costs, and high temperatures all year round. Taking Nigeria as an example, the difference between the levelized cost of commercial electricity prices and diesel power generation can reach more than 3 times, and the average daily power outage duration of the power grid exceeds 8 hours in some states. Although Kenya has high power grid coverage, rural and semi-off-grid areas still rely on diesel. Ghana has experienced a load shedding (dumsor) cycle in recent years, and commercial users' demand for energy storage has increased rapidly.

In these scenarios, the lithium iron phosphate (LiFePO4) chemical system has clear advantages over lead-acid: longer cycle life, DoD (depth of discharge) can operate stably at 80%-90%, more controllable attenuation in high temperature environments, and lower life cycle cost per unit kWh. For B2B buyers, this means lower replacement frequency and higher customer trust for repeat purchases.

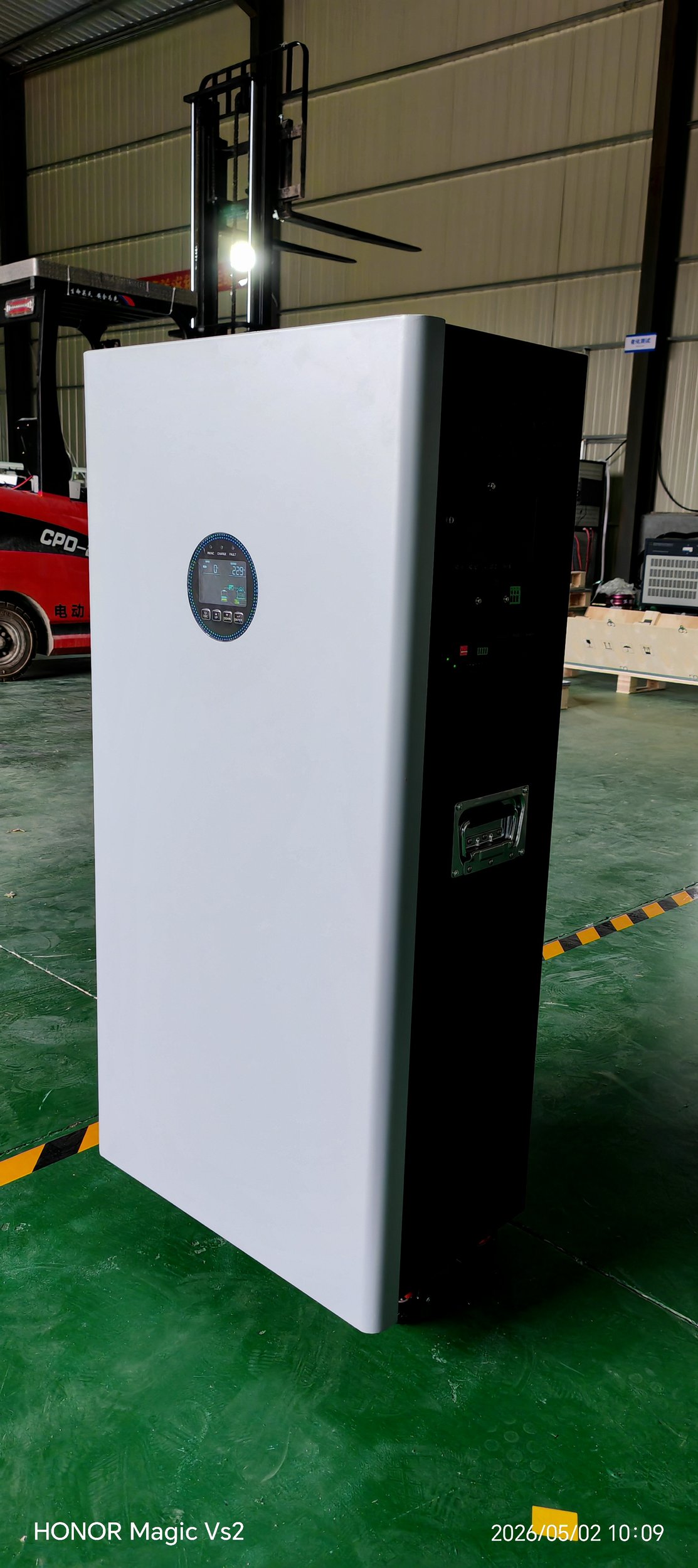

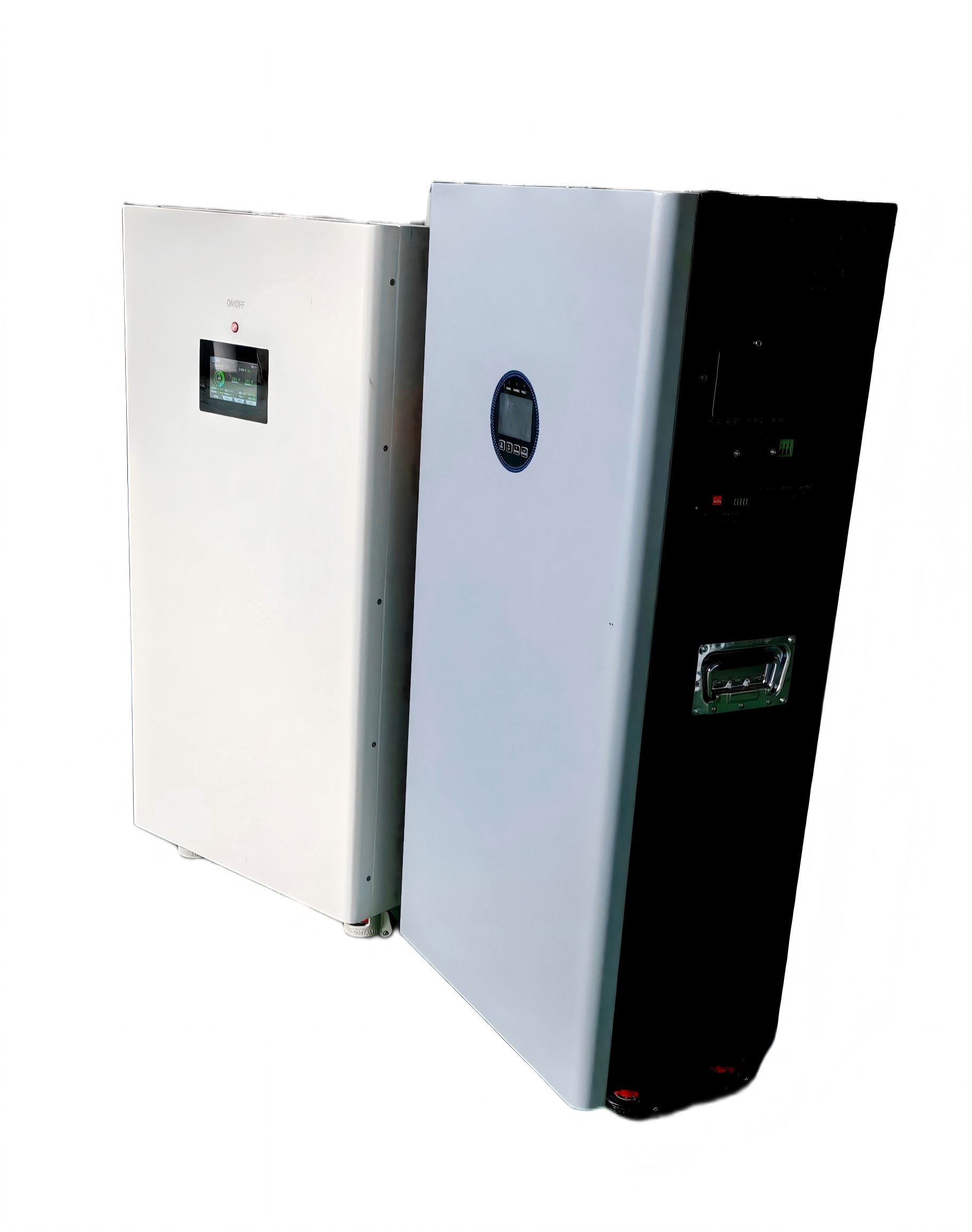

Wall-mounted energy storage battery 5-10 kWh (51.2V lithium iron phosphate): the first choice for small and medium loads

The wall-mounted model is suitable for small and medium load scenarios such as single-family residences, small shops, communication micro-stations, and security monitoring. The 51.2V nominal voltage is the standard platform for 16-string lithium iron phosphate and is compatible with the 48V/51.2V low-voltage side input of mainstream hybrid inverters.

Typical load list (taking 5kWh model as an example):

• LED lighting 10 units × 10W × 6h = 0.6kWh
• Fan 3 units × 60W × 8h = 1.44kWh
• TV/router 150W × 6h = 0.9kWh
• Refrigerator 150W × 10h (duty cycle 40%) = 0.6kWh
• The total daily consumption is about 3.5kWh, the configuration 5kWh model can cover about 1.4 days, leaving a safety margin

Key parameters table:

For street shops in Lagos, Nigeria, the 5kWh wall-mounted machine combined with the 3-5kW hybrid inverter can achieve continuous power supply for lighting, cashiers, and freezers during power outages; for the communication micro-station in Kenya, the 10kWh model can support longer backup power duration.

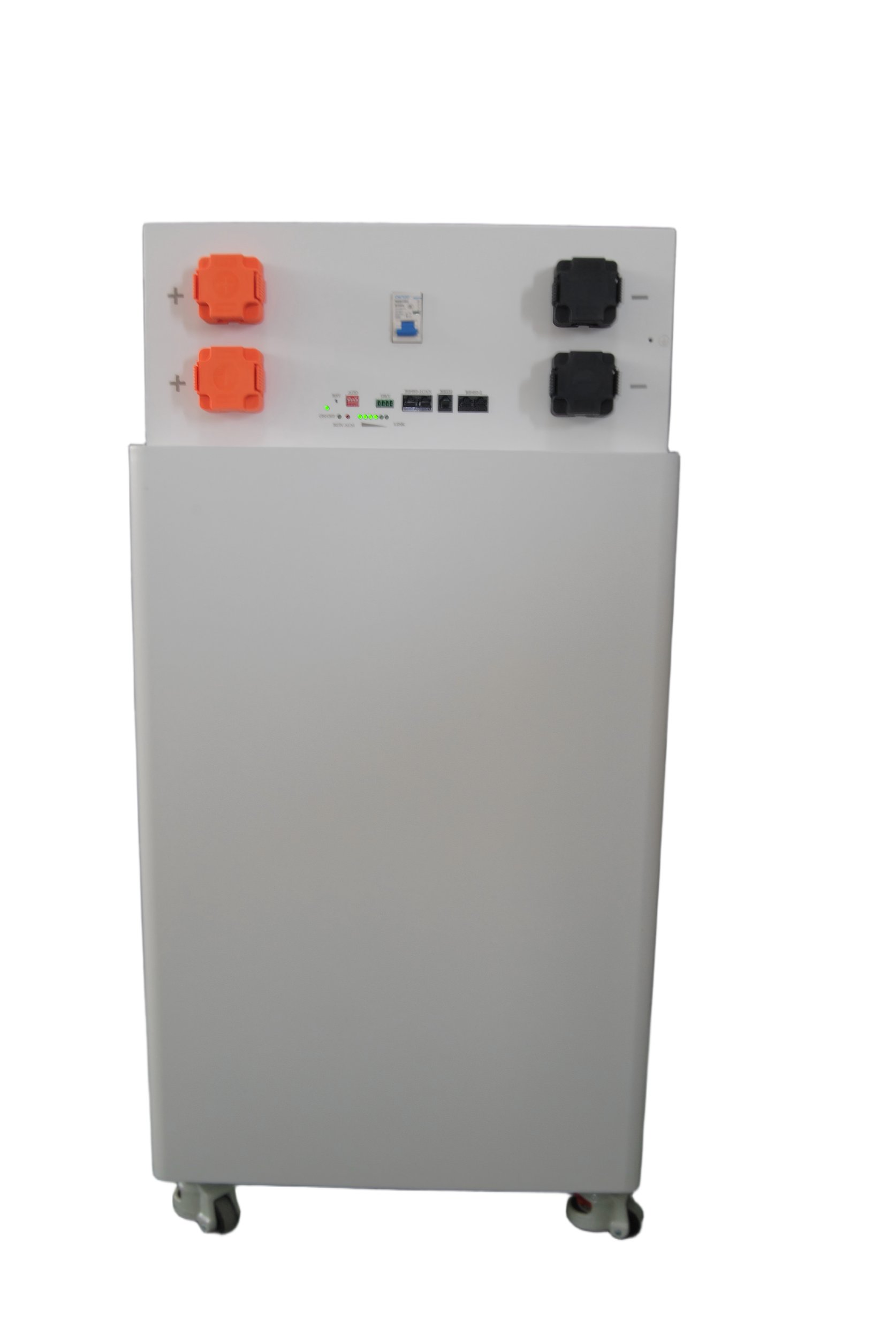

Stacked energy storage system 20-64kWh: Main force in commercial and off-grid scenarios

When the load rises to the level of small clinics, schools, gas stations, communication macro stations, off-grid processing plants, etc., the 20-64 kWh stacked system becomes a more economical choice. The modular stacking design allows installers to expand capacity in stages according to customer budgets, initially deploying 20 kWh, and then stacking it to 40 kWh or 64 kWh without replacing the host and cables.

Capacity selection logic:

1. Statistics of daily power consumption (kWh/day);
2. Determine the target backup power duration (usually 8-12 hours);
3. Divide by the available DoD (80% is recommended Calculation);
4. Round up to 20 / 40 / 64 kWh standard gear.

For example, an off-grid clinic in Accra, Ghana, has a daily consumption of 18 kWh and a target power backup of 10 hours, which is 7.5 kWh. Considering the inverter efficiency and attenuation margin, it can be satisfied by configuring a 20 kWh stacking system and retaining room for subsequent expansion.

Stacked system parameter table:

Inverse control integrated machine: the key to simplifying off-grid system integration

In off-grid and semi-off-grid scenarios where the power grid is extremely unstable, the inverter-control integrated machine (hybrid inverter + integrated control) can significantly reduce the number of system components and wiring complexity. For installers, the all-in-one machine reduces the difficulty of on-site debugging and fault points; for importers, the combined sales of all-in-one machines and batteries can increase the value of a single customer. It is recommended that when designing the solution, you should first confirm whether the BMS communication protocol of the inverter matches the RS485/CAN interface of the battery to avoid rework caused by on-site protocol failure.

B2B selection and purchasing key points

Core recommendations for dealers and installers:

• Based on scenarios: wall-mounted 5-10kWh for small and medium loads, stacked 20-64kWh for commercial and off-grid applications, forming a clear product matrix;
• Confirm certification compliance : CE certified, UN38.3 and IEC 62109 reports available upon request to facilitate customs clearance and project bidding;
• Follow BMS Protocol compatibility: Check the communication protocol list of mainstream inverter brands in the target market in advance;
• Calculation ROI: Taking diesel power generation as a comparison, the payback cycle of the energy storage system has obvious advantages in most West African business scenarios;
• High temperature adaptation: The ambient temperature in most areas of Africa is high, and the installation location must ensure ventilation and avoid direct sunlight.

If you are evaluating similar needs in South Asia or the Middle East market, you can refer to our special articles on [Wall-mounted lithium iron phosphate energy storage battery selection scheme in Pakistan and Bangladesh] (/zh/solutions/) and [Selection scheme for high-temperature power grid instability scenarios in Yemen and Iraq] (/zh/solutions/). The selection logic can be learned from each other.

Frequently Asked Questions (FAQ)

Q1: In the scenario of frequent power outages in Nigeria, is the 5kWh wall-mounted battery sufficient?

A: Depends on load. If only lighting, fans, routers and refrigerators are used, the daily consumption is about 3.5kWh, and the 5kWh model can cover about 1.4 days. If air conditioning or commercial equipment is included, it is recommended to upgrade to 10 kWh or stacked 20 kWh.

Q2: Can the stacked system be expanded later?

A: Yes. The stackable design supports phased stacking from 20 kWh to 40 kWh or 64 kWh without changing the host and main line, making it suitable for commercial customers with a budget.

Q3: What is the service life of lithium iron phosphate batteries in the high temperature environment in Africa?

A: The cycle life of lithium iron phosphate can reach more than 6000 times at 25°C (80% DoD). High temperature will accelerate attenuation. It is recommended to install it in a ventilated and cool place and avoid direct sunlight to extend its service life.

Q4: What certifications are required for exporting products to Africa?

A:CE Certified, UN38.3 and IEC 62109 reports available upon request, can meet the customs clearance and project compliance requirements of most African countries, the specific regulations are subject to the regulations of the destination country.

Q5: How to quickly select between wall-mounted and stacked models?

A: If the daily consumption is less than 5kWh, choose the wall-mounted 5-10kWh; if the daily consumption is more than 10kWh or requires more than 8 hours of backup power, choose the stacked 20-64kWh. You can refer to the capacity calculation logic in the article [Selection of off-grid and high electricity price scenarios in Southeast Asian islands] (/zh/solutions/) on the site.

Conclusion

Frequent power outages and off-grid demands in Nigeria, Kenya, and Ghana are pushing lithium iron phosphate energy storage systems from "optional accessories" to "infrastructure". The two product lines of wall-mounted 5-10kWh and stacked 20-64kWh, together with the inverse control integrated machine, can cover the complete load spectrum from single-family shops to off-grid clinics. We recommend that B2B buyers establish selection criteria based on three dimensions: scenario classification, certification compliance, and BMS protocol compatibility, and then use diesel power generation as a comparison to calculate ROI.

This article was written by the Hebei Chanming New Energy (CHANMING Energy) technical team and compiled based on actual deployment experience in the West and East African markets. The product has passed CE certification, UN38.3 and IEC 62109 reports available upon request.
