Off-grid and high electricity price scenarios in Southeast Asian islands: Selection of wall-mounted 5-10 kWh and stacked 20-64 kWh lithium iron phosphate energy storage

In farms in the Mekong Delta in Vietnam, resorts in the Visayas in the Philippines, and fishing villages off the coast of Sulawesi in Indonesia, the cost of electricity per unit of diesel generators has long hovered at 0.30–0.55 USD/kWh, while the grid power supply on some islands is only 4–8 hours a day. For local dealers and installers, lithium iron phosphate energy storage batteries are no longer "backup accessories", but a cash flow tool that replaces diesel and flattens electricity prices. Based on our actual deployment experience in Southeast Asian island scenarios, this article breaks down the selection logic of the two product lines: wall-mounted 5-10 kWh and stacked 20-64 kWh.

1. Pain points of the scenario: the double squeeze of high electricity prices and weak power grid

Three typical portraits of the target market:

• Vietnam : Industrial and commercial electricity prices are rising, there are still daytime power cuts in the southern islands and coastal breeding areas, and the maintenance cost of diesel backup engines is high.
• Philippines: The archipelago’s terrain results in weak terminal power grids, frequent power outages in the outer islands of Visayas and Mindanao, and resorts and communication base stations have high requirements for power supply continuity.
• Indonesia : Microgrid coverage on outlying islands is insufficient. Fishermen’s cold storage and island B&Bs rely on diesel engines. After fuel transportation costs are added, the cost per kilowatt hour can reach more than 0.5 USD/kWh.

What these scenarios have in common is: clear load, predictable expansion, and sensitivity to cycle life . The economics of an energy storage system does not depend on the initial purchase price, but on the DoD (depth of discharge), number of cycles and diesel replacement rate.

2. Product line matching: how to divide the work between wall-mounted and stacked

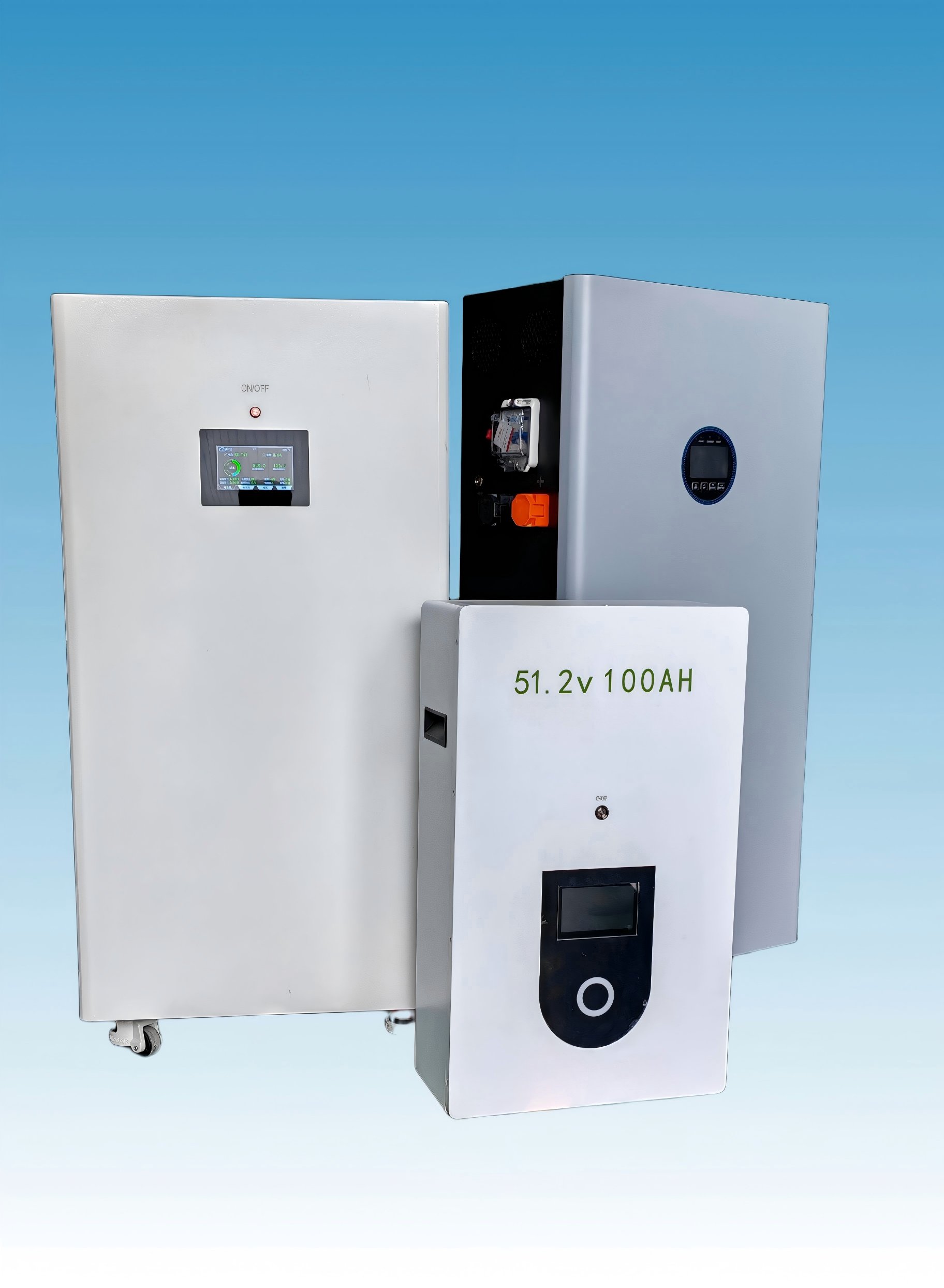

Wall-mounted energy storage battery 5-10 kWh (51.2V lithium iron phosphate)

Suitable for single households, small shops, communication nodes, etc. where the load is concentrated and the installation space is limited . The 51.2V nominal voltage matches the DC side of mainstream hybrid inverters, and wall-mounted installation saves ground space, making it easy to deploy quickly in residential houses and small resorts in Vietnam and the Philippines.

Stacked energy storage system 20-64kWh

Suitable for occasions where the load list is long and needs to be expanded in stages : island B&B groups, cold storage, microgrid nodes, and communication base stations. Modular stacking means that dealers can deliver at 20 kWh first, and then stack it to 64 kWh as needed later, which lowers the initial investment threshold and facilitates container consolidation for shipping.

3. Capacity selection: from load list to kWh

The first step in selection is not to look at the battery, but to make a load list. Take an 8-room island resort in the Philippines as an example:

If based on 80% DoD and considering 1 rainy day redundancy, the photovoltaic + energy storage system needs to be configured with about 40-48 kWh available capacity, and it is more reliable to connect 2 groups in parallel for the corresponding stacked system. If it only covers key loads at night (air conditioner + freezer + lighting, about 60 kWh/day), 20–30 kWh stacking can start.

The typical scenario of wall-mounted 5-10kWh is: single-family night lighting + fan + refrigerator + TV, daily power consumption 4-8kWh, with 3-5kWp photovoltaic, it can achieve a high proportion of self-use.

4. Key parameters comparison table

It should be noted that cycle life is directly linked to DoD. Quotation and selection should be based on the test conditions marked in the specifications, and avoid using "theoretical cycle times" to replace actual operating condition data.

5. ROI calculation: Diesel substitution is the core variable

Taking an island B&B in Indonesia with a daily electricity consumption of 60kWh as an example, the diesel engine solution’s kWh cost is calculated as 0.45 USD/kWh, and the annual fuel and maintenance expenditure is about 9,855 USD. After switching to "photovoltaic + stacked energy storage", the diesel engine was degraded to standby, and the annual operating hours dropped significantly.

The key to ROI is not the unit price of the battery, but rather:

1. Diesel replacement rate-Determines how much fuel cost is saved every year;
2. Cycle life and DoD-Determines how many years the battery can be used and diluted to every kWh cost;
3. Capacity expansion flexibility - stacking allows additional modules to be added as the load increases, avoiding one-time over-investment.

For dealers, it is easier to convince end customers by calculating these three variables clearly than simply comparing prices.

6. Certification and compliance: The ticket for B2B delivery

Southeast Asian countries have different access requirements for energy storage products, but CE certification, UN38.3 transportation test report, and IEC 62109 safety report are the three documents most commonly requested by purchasers. Our wall-mounted and stacked lithium iron phosphate energy storage systems have obtained CE certification, UN38.3 and IEC 62109 reports available upon request, which facilitates dealers to complete customs clearance and local bidding.

Frequently Asked Questions (FAQ)

Q1: Can the wall-mounted 5-10kWh drive air conditioning?

Yes, but the starting current and inverter capacity need to be calculated. A single 1.5 HP inverter air conditioner can run about 5-8 kWh at night. It is recommended to equip it with a hybrid inverter of 5 kW or more, and confirm that the battery's continuous discharge power meets the air conditioner's starting peak value.

Q2: Is it easy to expand the stacked system later?

Convenience. The modular stacking design allows the addition of battery modules on the original basis, gradually expanding from 20 kWh to 64 kWh, but the compatibility of BMS with the inverter and the upper limit of the number of parallel connections need to be confirmed before expansion.

Q3: Will the service life of lithium iron phosphate be shortened in the high temperature environment of Southeast Asia?

High temperature will accelerate the decay. It is recommended that the installation location be ventilated and shaded to avoid direct sunlight; when selecting the model, refer to the temperature range marked in the specifications and reserve space for heat dissipation, which can effectively extend the cycle life.

Q4: Will CE certification and IEC 62109 report help with customs clearance?

Helpful. CE is a common compliance certificate for entering most Southeast Asian markets. IEC 62109 safety report and UN38.3 transportation report are documents often requested by purchasers and logistics links, which can reduce customs clearance and bidding resistance.

Q5: What is the minimum order quantity and delivery time?

We supply to dealers, installers and importers. The specific MOQ and delivery date vary with the model and destination port. It is recommended to confirm directly with the sales team based on the project load list and target capacity.

Conclusion

The island off-grid and high electricity price scenarios in Vietnam, the Philippines, and Indonesia are essentially an engineering economics problem: the load list determines the capacity, DoD and cycle life determine the amortization cost, and the diesel replacement rate determines the payback period. The wall-mounted 5-10 kWh solves the problem of single-point power supply, and the stacked 20-64 kWh supports scalable microgrids. The two product lines cooperate with the inverse control integrated machine to form a deliverable and replicable off-grid solution. The Hebei Chanming New Energy technical team has been tracking the deployment conditions in Southeast Asian islands for a long time. Dealers and installers are welcome to bring the actual load list for docking and selection.

This article is written by the technical team of Hebei Chanming New Energy (CHANMING Energy) and is compiled based on the actual deployment experience in the Southeast Asian target market.
