From blackouts in Africa to off-grid in Southeast Asia: three common misunderstandings in energy storage battery selection

In Lagos, Nigeria, many commercial users face 8–12 hours of grid outages every day; in island resorts in Palawan, Philippines, off-grid diesel generators push electricity prices to over $0.30 USD/kWh. Energy storage batteries have gone from "optional accessories" to rigid infrastructure in these markets.

However, as an importer, installer or EPC contractor serving these markets, have you ever encountered such confusion when recommending battery systems to customers: What is the actual usable capacity of a nominal 10 kWh battery? How much difference is there between LiFePO4 and NMC in high temperature environments? Which one is a "must" and which one is a "plus" between CE certification and UN38.3?

Based on the actual deployment experience of multiple off-grid/weak network projects in Africa and Southeast Asia, this article sorts out the three most common cognitive misunderstandings in energy storage battery selection to help you use engineering language to talk to customers and avoid hidden risks in procurement decisions.

---

Misunderstanding 1: Only look at the nominal capacity (kWh) and ignore DoD and cycle life

Many buyers who are new to energy storage batteries will intuitively think: "10 kWh is 10 kWh". However, in engineering practice, there is a DoD (Depth of Discharge) threshold between the nominal capacity and the actual available capacity .

Take two common batteries on the market as examples:

Table 1: Under the same nominal capacity, the impact of DoD and cycle life on the actual available capacity

Battery A has 1 kWh more usable output per cycle than battery B. In the long run, 8000 cycles means approximately 8000 kWh more total discharge capacity. For commercial users who cycle once a day, this directly determines whether the battery should be "replaced after 6 years of use" or "installed once for 15 years."

Engineering suggestion: When making capacity selection for customers, be sure to ask the supplier to provide DoD – Cycle Life vs DoD Curve (Cycle Life vs DoD Curve) rather than just looking at the nominal capacity number.

Figure 1: Residential rooftop photovoltaic + wall-mounted energy storage system in the suburbs of Lagos, Africa. A high DoD means users get more actual usable power with limited roof area and budget.

---

Misunderstanding 2: Confusing chemical systems, LiFePO4 and NMC

In the field of energy storage, LiFePO4 (lithium iron phosphate) and NMC (nickel cobalt manganese ternary) are the two mainstream lithium battery chemical systems. NMC has higher energy density (larger capacity under the same volume), which makes it dominant in the field of electric vehicles; however, in the stationary energy storage scenario, the advantages of LiFePO4 are often underestimated.

Table 2: LiFePO4 vs NMC key parameter comparison (fixed energy storage scenario)

For high-temperature areas such as sub-Saharan Africa, the Middle East, and South Asia, the ambient temperature is between 35–45 °C all year round. NMC batteries require an additional thermal management system (air conditioning or liquid cooling) under these conditions, otherwise the cycle life will be significantly reduced. The thermal runaway temperature of LiFePO4 is as high as over 270 °C, making it more suitable for deployment in non-air-conditioned computer rooms or outdoor cabinets.

Engineering suggestions : If your target market includes high-temperature areas such as Nigeria, Kenya, Saudi Arabia, and Pakistan, the LiFePO4 system is recommended first. Don't simply use "energy density" as the only selection indicator.

---

Misunderstanding 3: Neglecting BMS Protocol compatibility and certification compliance threshold

BMS (Battery Management System) is the "brain" of the battery. It not only protects the battery cells from overcharge, over-discharge, and over-temperature damage, but also determines whether the battery can be seamlessly connected with the customer's inverter and EMS (Energy Management System).

In B2B projects, common compatibility pitfalls include:

• Communication protocol mismatch : The inverter supports CAN/RS485, but the battery BMS only outputs RS232, resulting in the inability to read SOC (State of Charge) data;
• Incompatible voltage range : Battery rating 51.2 V, but the MPPT voltage window of the inverter is 48–60 V, and low-voltage protection is frequently triggered in actual operation;
• Lack of certification leads to customs clearance obstruction : Shipping a full container of batteries to the port of Lagos, Nigeria, if there is no UN38.3 The test report may be seized by customs; to enter the European market, you must hold a CE (including IEC 62109) declaration of conformity.

Table 3: Energy storage battery core certification list and applicable scenarios

Engineering suggestions: Before purchasing, ask the supplier for BMS Communication Protocol Document (Protocol Specification) and Complete certification scans, and joint debugging tests with the target inverter during the prototype stage. Don’t wait for the entire container to arrive at the port only to discover that the protocols are incompatible.

Figure 2: Photovoltaic + stacked energy storage system in island resorts in Southeast Asia. BMS Protocol compatibility directly determines whether the system can achieve remote monitoring and intelligent scheduling.

---

Conclusion: Use engineering language to make selections, and use a long-term perspective to calculate ROI

Energy storage batteries are not a one-time consumer product but an infrastructure investment spanning 10–15 years. For importers and installers, the core of model selection is not "who has greater capacity" or "who has lower unit price", but:

1. DoD × cycle life determines the real available capacity and replacement cycle;
2. Chemical system × target market climate Determines the thermal management cost and safety margin;
3. BMS Agreement × Certification List determines whether the project can be successfully delivered and passed customs clearance.

Chanming All series of LiFePO4 energy storage batteries (5 kWh wall-mounted to 64 kWh stacking system) are equipped with self-developed BMS, supporting CAN/RS485 dual protocol output, through CE + IEC 62109 Certification, UN38.3 and UL reports available on request. If you need a customized capacity selection solution for your target market, please contact our technical team through the website consultation form or email.

Figure 3: Chanming Wall-mounted energy storage battery factory actual shot. Multiple batteries are tested in parallel to ensure that each battery passes complete charge, discharge and BMS communication verification before going offline.

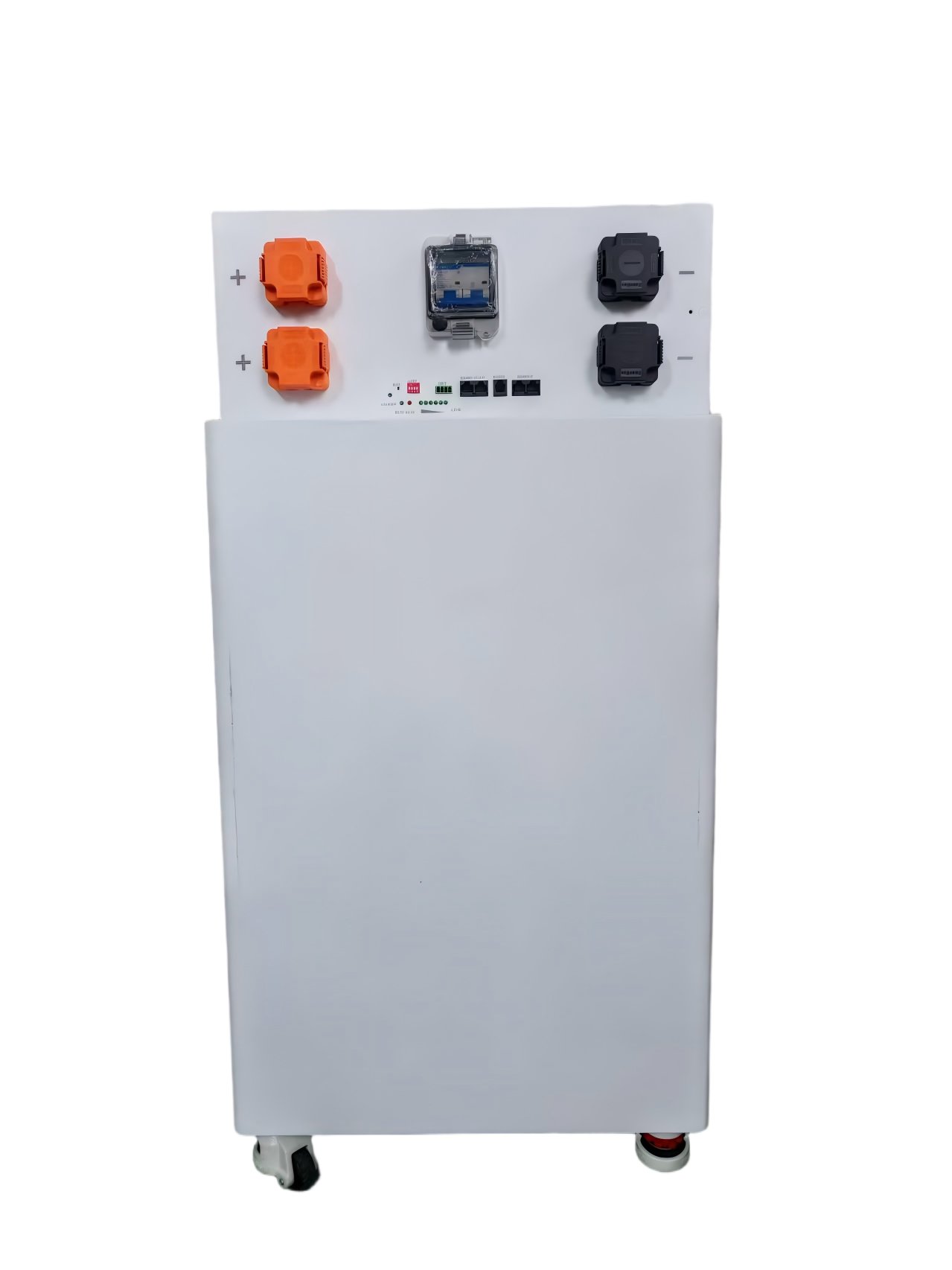

Figure 4:10 kWh Front view of wall-mounted battery (orange terminal + circuit breaker design), IP65 protection level, supports direct installation in outdoor cabinets.
