10kWh Wall-mounted household energy storage battery: load evaluation, system configuration and purchasing guide

In urban residential areas in Punjab, Pakistan, rotating power outages (load shedding) in power grid load zones last for 8-12 hours a day; in Lagos, Nigeria, the frequency of power outages in commercial areas forces households to make backup power supply a standard housing configuration; in Metro Manila, the Philippines, residential electricity prices have remained in the range of 0.18-0.22 USD/kWh for a long time. Household users in these three markets jointly promote a clear product demand: A 10-level (G5) wall-mounted energy storage battery that can cover the basic load of the entire house, operate in conjunction with the rooftop photovoltaic system, and does not occupy any space.

For dealers and installers, the 10 kWh wall-mounted battery is the workhorse form factor in the home energy storage product line—it fills the gap between the 5 kWh (which only covers base load) and the 20 kWh stacked system (which takes up space and costs beyond the budget of most households). This article provides a complete selection framework for this capacity range.

1. Capacity positioning: 10 kWh What loads are covered

The starting point for capacity selection is the load list, not the residential area. Take a typical developing market family as an example:

Calculated based on 80% DoD (depth of discharge), the available capacity of a 10kWh battery is 8kWh. In the above load list, if the operation of the air conditioner is compressed to 4 hours and the washing machine is moved to the direct photovoltaic supply period, the battery's nighttime discharge demand can be covered by about 7.5 kWh - 10 kWh gears.

Capacity quick check :

2. Core parameters

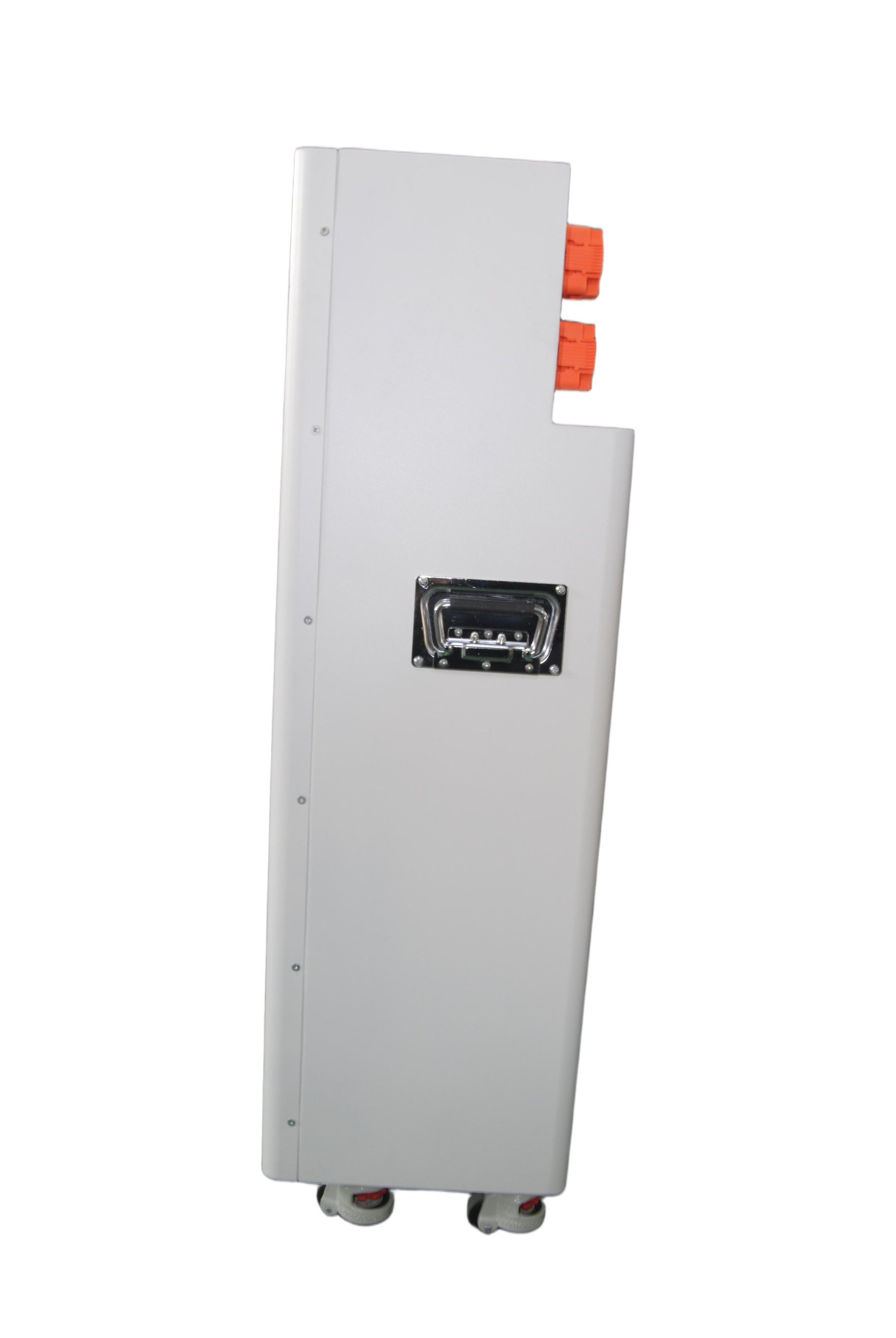

Figure: 10 kWh Wall-mounted LiFePO4 Energy storage battery

⚠️ Procurement verification points: Cycle life data should require the supplier to provide the battery cell manufacturer’s test report and confirm the test conditions (DoD, ambient temperature, charge and discharge rate). Products with only "8000 cycles" rating but no test report available should be considered as unverified claims.

3. System configuration: matching of battery and inverter

10 kWh The battery does not work alone. The complete system consists of three parts: battery, hybrid inverter (Hybrid Inverter), and photovoltaic array. The matching logic is as follows:

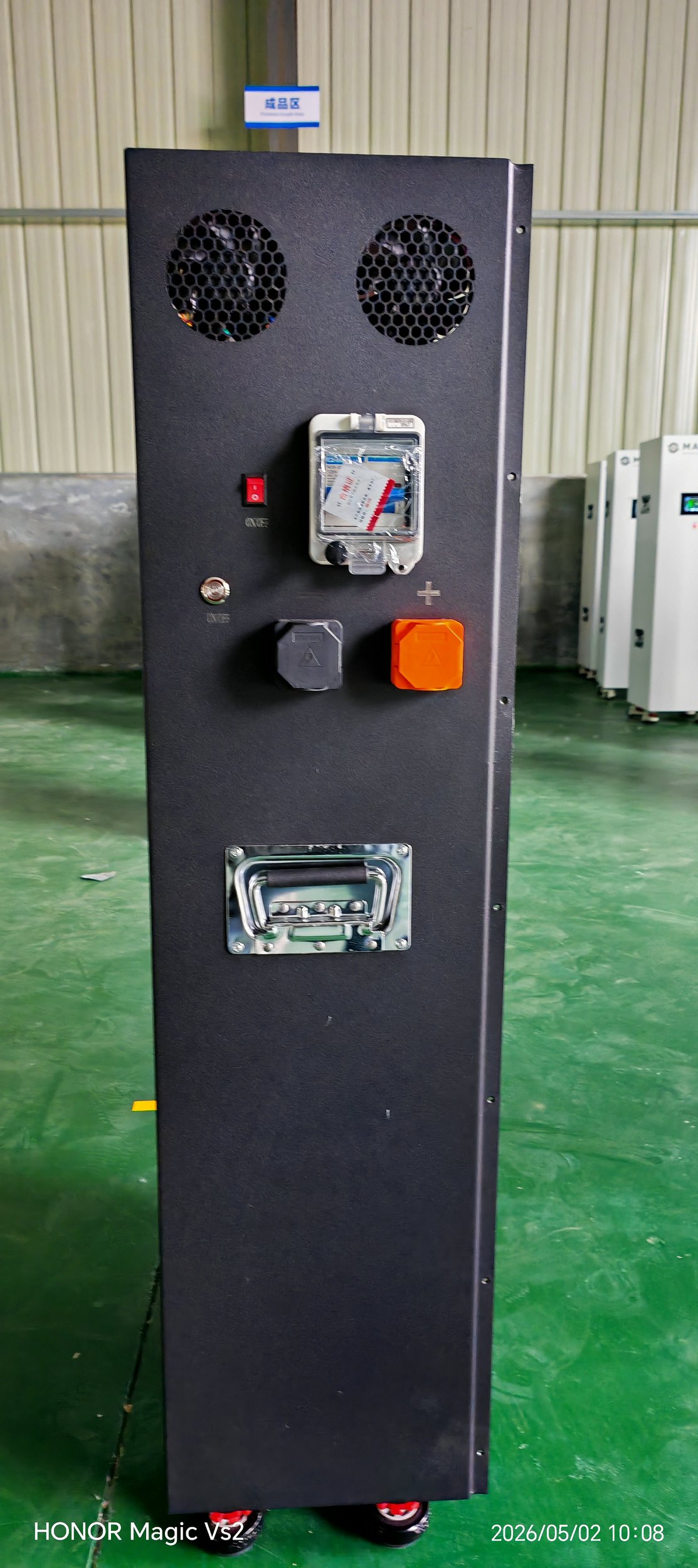

Figure: Wall-mounted battery communication interface and BMS details

Surge capacity verification : The starting current of motor loads (air conditioning compressors, refrigerators, water pumps) is 3-5 times the rated current. The peak power of the hybrid inverter must cover the largest single device that can be started simultaneously. Taking a 1.5 HP air conditioner (rated 1,200W, starting peak value about 4,800W) as an example, the surge capacity of a 6.2 kW inverter is usually 2 times the rated power (12.4 kW), which can cover the starting peak value.

BMS Protocol compatibility : The communication protocol of the battery BMS and the inverter must match (CAN or RS485, the protocol version is consistent). The performance of protocol mismatch is "the battery has power but does not discharge" or "charging cannot reach full power" - this type of failure is often misjudged as a battery failure in after-sales diagnosis, but is actually a communication problem. It is recommended to purchase the battery and inverter package from the same supplier, or complete the agreement compatibility confirmation before placing the order.

IV. Installation requirements

Picture: Actual installation of wall-mounted battery and hybrid inverter

1. Load-bearing wall fixing : 10 kWh The net weight of the wall-mounted battery is about 90-100kg (based on the factory specifications), and expansion bolts must be used to fix it to the solid load-bearing wall. Gypsum board partition walls and lightweight brick walls cannot be used as installation surfaces.
2. Heat dissipation space: Reserve 10-15cm ventilation gap on the upper and lower sides of the fuselage. It is prohibited to install it in a closed cabinet.
3. Ambient temperature : The ambient temperature of the installation location should be controlled at 0-45°C. In the South Asian summer, walls exposed to direct sunlight should be avoided, and the north side or a shady location indoors should be preferred.
4. Distance from the inverter : The shorter the DC cable between the battery and the inverter, the better (recommendation <2m），降低线损与压降。
5. Maintenance channel : Reserve at least 60cm on the front of the fuselage The inspection space is convenient for future BMS detection and terminal tightening inspection

5. Economic Reference: Taking Punjab Housing in Pakistan as an Example

Assumptions: The average daily household electricity consumption is 16 kWh, the local load shedding is 10 hours a day, the alternative is a 2.5kVA gasoline generator (fuel consumption is about 1.2L/h, gasoline price is 1.05 USD/L).

The investment payback period is about 11-14 months. The total cost of the generator option over a 10-year period is eight times that of the solar-storage option. This calculation is based on the above assumptions. The actual figures fluctuate with local oil prices, electricity prices and power outage duration. Installers can use this framework to generate targeted calculations for customers.

6. Procurement Verification Checklist

Importers and distributors should confirm item by item before placing orders:

• [ ] LiFePO4 Cell manufacturer’s cycle life test report (indicate DoD and temperature conditions)
• [ ] CE Statement of Conformity + Technical Documentation (EMC + LVD + RoHS)
• [ ] UN38.3 Test summary (mandatory document for shipping booking)
• [ ] BMS Communication protocol document (CAN/RS485 Agreement version, confirmation of compatibility with the target inverter model)
• [ ] Warranty terms for serial number tracking (scan the code to check the factory test data of the battery)
• [ ] Consistency check of nameplate parameters and specifications (voltage, capacity, cycle life)
• [ ] FOB/CIF quotation (Incoterms 2020) and delivery cycle

Conclusion

10kWh wall-mounted battery is clear: it is the main specification for home energy storage in developing markets, upwardly undertakes the commercial demand of 20kWh stacking system, and is downwardly compatible with the basic backup power scenario of 5kWh. For dealers, mastering the complete selection process of "load list → capacity selection → inverter matching → surge verification" is the basis for providing professional services to installers and end customers. Parameters and specifications are subject to the factory specifications. UN38.3 report is provided with the goods. Specific certification requirements can be confirmed with the business docking person.
