Chanming New Energy 5kWh Wall-mounted household energy storage battery: "power safe" for small and off-grid households
In areas with unstable power grids or high electricity bills such as Nigeria, Pakistan, and Southeast Asian islands, more and more households are beginning to regard "solar panels + energy storage batteries" as standard equipment. Among the many capacities, the 5 kWh wall-mounted energy storage battery has become the first choice for small and off-grid households due to its just right size, solid safety and affordable price. It's not the biggest, but it's often the "most cost-effective and worry-free" one.
💡One sentence conclusion: For small families with an average daily electricity consumption of 8-12 degrees, 5kWh is the sweet spot of "can stay overnight and does not take up space" - with 2-3kWp photovoltaics, it can basically run through the cycle of "generating electricity during the day and using electricity at night".

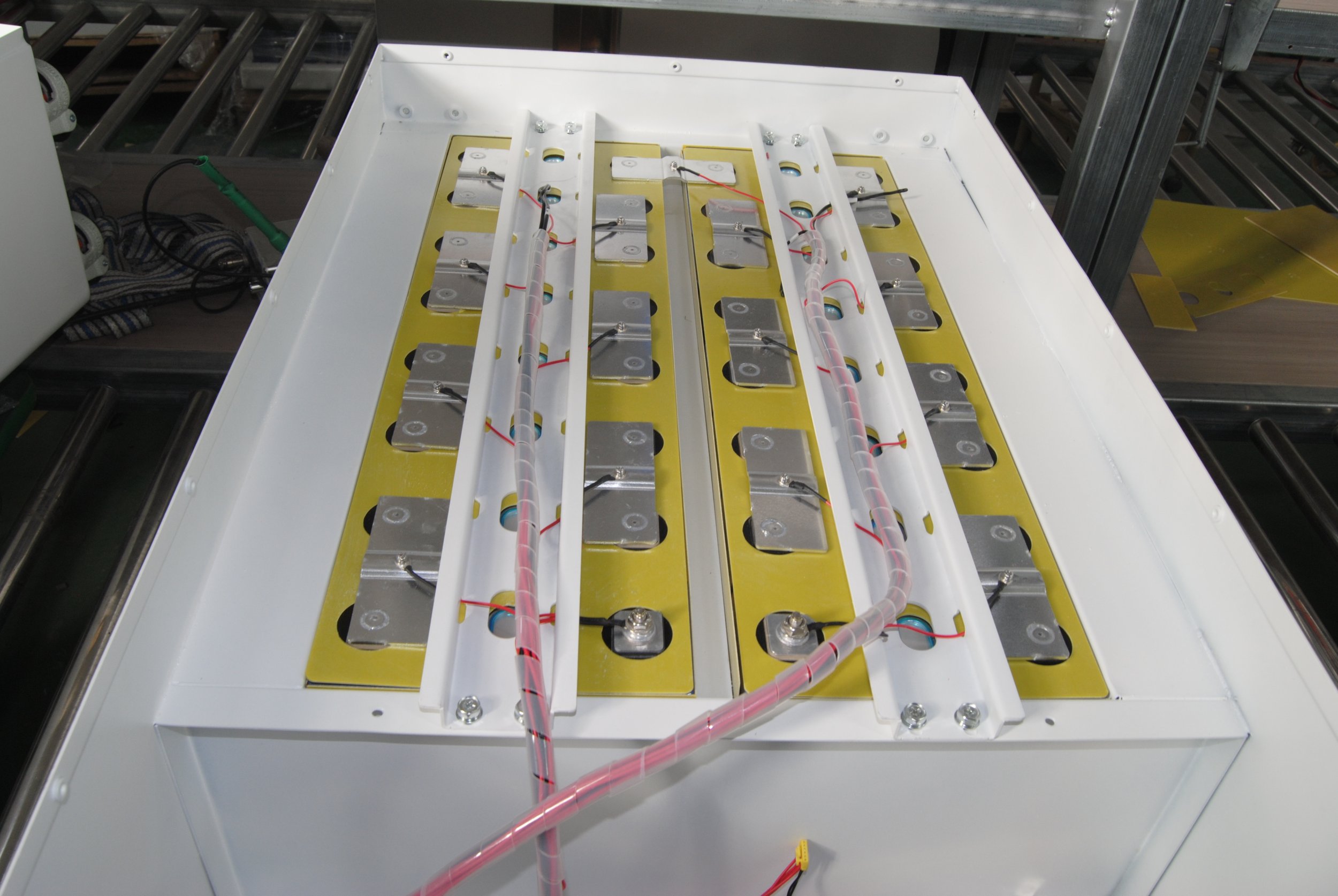

Figure: 5 kWh Wall-mounted LiFePO4 Energy storage battery (subject to the actual product)
Why 5 kWh, not bigger or smaller
Choosing capacity is essentially a matter of finding a balance between "enough" and "not wasted". Those smaller than it (2-3 kWh) often cannot sustain the operation of the refrigerator all night; those larger than it (10 kWh and above) are prone to budget overruns, wall load-bearing and installation space constraints. 5kWh happens to be stuck in the middle, so it has always been a volume model in the home market in Southeast Asia and Africa.
Core parameters: Just look at these four items
| Parameter | 5 kWh Wall-mounted battery (industry typical value) | Description |
|---|---|---|
| Cell system | LiFePO4 (Phosphoric acid Lithium iron) | Good thermal stability, not easy to catch fire |
| Nominal voltage | 51.2V | 16 String standard low voltage system |
| Available capacity | About 5 kWh (according to 100% DoD Design) | Actual usability is close to the nominal |
| Cycle life | 8000+ times @80% DoD (typical) | Recharge and discharge every day, more than 10 years of use |
| Warranty | 5 Year (mainstream range) | Subject to factory contract |
| Protection level | IP21 / Wall-mounted metal enclosure | Indoor dry environment installation |
| Certification | CE; UN38.3 (mandatory for lithium battery transportation); UL Available upon request | Export and transportation compliance bottom line |
⚠️ Selection reminder: "Nominal capacity" and "available capacity" are not the same thing. High-quality batteries allow deep discharge (DoD is close to 100%), while inferior batteries marked 5 kWh can actually only be used as 3 kWh. When making an inquiry, be sure to ask about the available capacity and cyclic decay curve , rather than just looking at the big numbers on the poster.
It is most suitable to appear in these scenes
- Off-grid/weak network households : There is no stable mains power in the village, or electricity is only available for a few hours a day. 5kWh Wall-mounted + 2–3 photovoltaic panels can provide a family with lights, a refrigerator, and mobile phone signal.
- Frequent urban power outage areas : In large cities like Lagos and Karachi, rolling blackouts (load shedding) are the norm. The wall-mounted battery is connected to the household line and automatically switches when there is a power outage. The air conditioner and router are not powered on.
- Small shop backup: Use one 5kWh in barber shops and convenience stores to keep the freezer and cashier, and goods will not be lost during power outages.
Security: Why we insist LiFePO4
Energy storage is most afraid of two things: catching fire and decaying too fast . The thermal runaway temperature of lithium iron phosphate (LiFePO4) is much higher than that of ternary lithium (NMC). It is not easy to catch fire even if it is punctured or overcharged. This is a non-negotiable bottom line in the home scene. Our entire series adopts LiFePO4 and BMS, which have five layers of protection: overcharge, overdischarge, overcurrent, short circuit, and temperature control.
Figure: Wall-mounted battery installation diagram (fixed to the load-bearing wall, leaving space for heat dissipation above and below)
Several practical suggestions for selection and installation
- Look at BMS Communication protocol: Give priority to models that support CAN/RS485 to interface with mainstream inverters. Only if the mobile phone APP can check the power level is it truly "smart".
- Wall-mounted and fixed to the load-bearing wall: The net weight of this product is approx. 45–50kg (Subject to the actual specifications. Please check the factory data with the salesperson before placing an order). Expansion screws must be used to drive the solid wall. Do not hang it on the partition to save trouble.
- Leave space for heat dissipation : Leave 10cm above and below the machine for ventilation, and do not stuff it into a closed cabinet.
- Photovoltaic ratio: 5kWh It is recommended that the battery be equipped with 2–3kWp photovoltaic. It can be fully charged in one day on a sunny day and there is still more.
✅Key points review: LiFePO4 Intrinsic safety + five layers of BMS protection + deep discharge available capacity are the three hard indicators for home energy storage to "buy with confidence and last for a long time".
Explanation on the rigor of parameters
The voltage, capacity, cycle life, protection level, etc. listed in this article are industry typical reference values and are used to help quickly establish a selection concept; formal report For prices, contracts and technical agreements, please refer to our factory specifications (datasheet) . The net weight, dimensions, charge and discharge rates, operating temperature, etc. are subject to the actual markings. Lithium battery transportation must be accompanied by a UN38.3 report. Before exporting, please confirm with the business the certification requirements of the destination country (such as CE / UL / local access).
Conclusion
5kWh The wall-mounted energy storage battery is not the flashiest, but it is the lowest threshold for bringing "freedom of electricity" into ordinary households. For dealers and installers, it has a simple SKU, few after-sales services, and clear repurchase accessories, making it a solid entry point into the home energy storage market. If you're looking for a first-choice product for a market with frequent blackouts, this deserves to be at the top of your list.
