Southeast Asian island off-grid and high-priced scenarios: wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage options

At farms in the Mekong Delta of Vietnam, resorts in the Visayas of the Philippines, and communication base stations in the Kuril Islands of Indonesia, diesel power generation costs have long hovered at 0.35-0.60 USD/kWh, and some remote islands are even higher.At the same time, the sunshine resources in these areas are generally 4.5–5.5 kWh/m ²/day, and the economics of photovoltaic + energy storage have crossed the tipping point.For local dealers, installers, and importers, the real challenge is not "whether to use energy storage", but how to complete reliable capacity selection and B2B delivery with wall-mounted 5-10 kWh and stacked 20-64 kWh lithium iron phosphate energy storage systems under conditions of high temperature and high humidity, salt spray corrosion, and frequent grid interruptions .

I. Market pain points: high electricity prices and off-grid coexistence in Southeast Asia

The energy structure of Southeast Asia presents a clear "two-track system".In the dry season, the central and southern parts of Vietnam face a decline in hydropower output and a peak load. Commercial and industrial users are required to pay a ladder price. The peak price can exceed 0.13 USD/kWh (about 3,300 VND), while the cost of diesel power generation on off-grid islands is 3–4 times that.Philippine electricity prices have long been at the forefront of Asia, with consumer prices around 0.20-0.25 USD/kWh, and microgrids in Visayas and remote Mindanao islands still dependent on diesel.The situation in Indonesia is more fragmented - a large number of the more than 17,000 islands are not connected to the PLN main network, and communication base stations, cold storage, and desalination equipment can only rely on diesel or small photovoltaic systems.

The common characteristics of these scenarios are: large load fluctuations, constant ambient temperature of 30–38°C, humidity over 80%, and serious salt spray erosion .Ordinary lead-acid batteries often have a cycle life of less than 800 cycles at 35°C, while lithium iron phosphate (LiFePO4) can still maintain more than 2,000 cycles under the same conditions, which is the technical basis for the rapid local acceptance of wall-mounted and stacked energy storage systems.

II. Capacity Selection: From Load List to Battery Capacity

The first step in selecting a B2B project is to establish a complete workload list, rather than relying on experience-based estimations. Take a typical island resort in the Philippines as an example:

Considering 80% DoD (depth of discharge) and 90% inverter efficiency, the required battery capacity is about 127.2 ÷ 0.8 ÷ 0.9 ≈ 177 kWh.Stackable energy storage systems 20-64 kWh are commonly used in this type of medium-sized project to form a three-phase microgrid in parallel with a hybrid inverter.

The single point load of Vietnamese farms or Indonesian communication base stations is much smaller, the daily power consumption is often between 8–20 kWh, and the wall-mounted energy storage battery 5-10 kWh can be covered, installed on the indoor wall, saving the floor space.For the differences in the selection of different high temperature markets, please refer to the [wall-mounted and stacked lithium iron phosphate solutions in the Yemeni and Iraqi markets] (/uk/solutions/), which discusses the derating strategies for environments above 45°C in more detail.

III. Product matching: wall-mounted and stacked division of labor

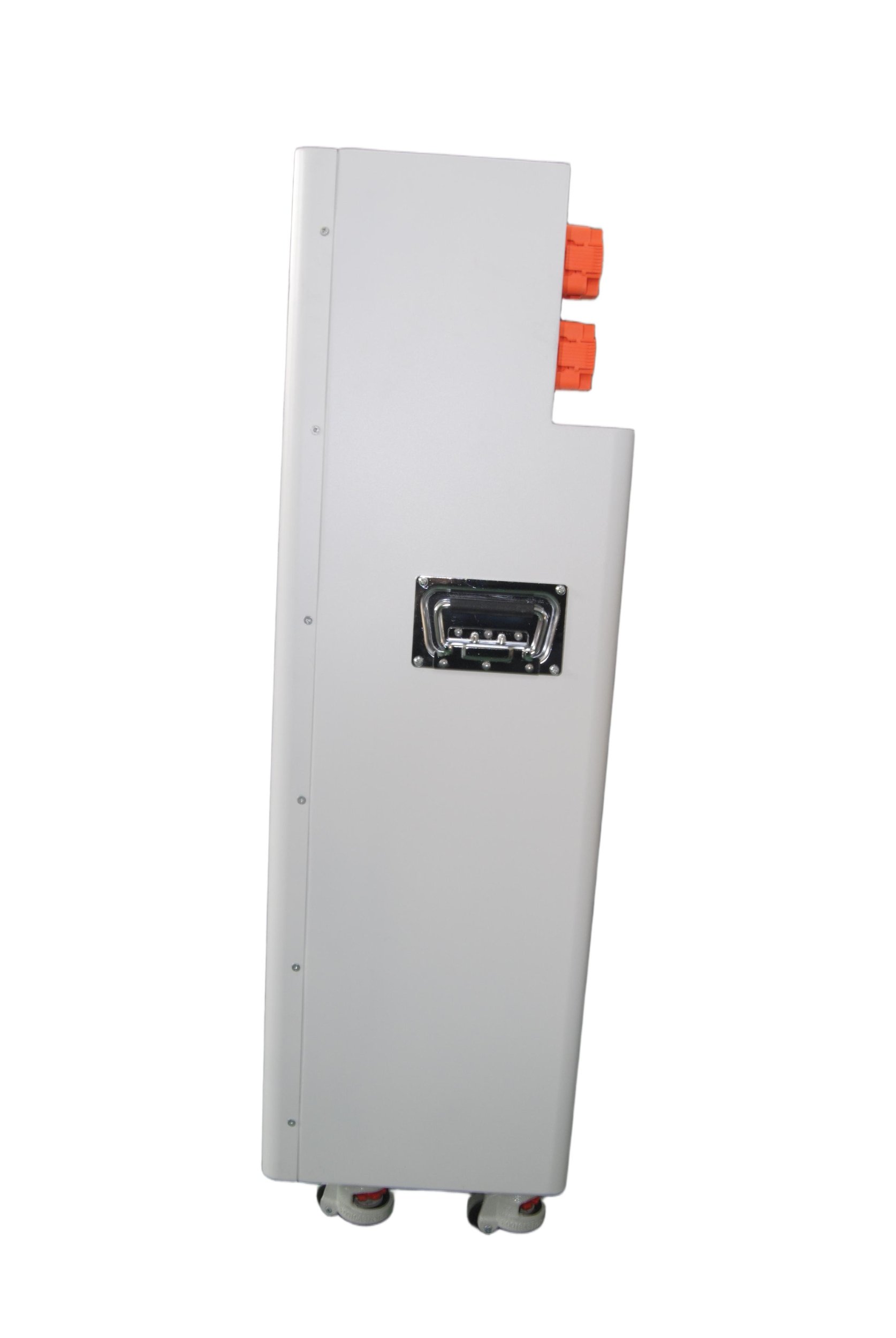

Wall-mounted energy storage batteries 5-10 kWh (51.2V lithium iron phosphate) are facing single-phase off-grid or grid-connected backup scenarios.Its advantages are the optional IP65 protection level, space-saving wall mounting, and support for RS485/can communication with mainstream hybrid inverters.For small shops on the Philippine islands, coffee plantations in Vietnam, and fishing village refrigerators in Indonesia, the 5 kWh and 10 kWh capacity bits can be flexibly combined, and 1–2 units can be connected in parallel to meet the daily electricity needs of 8–20 kWh.

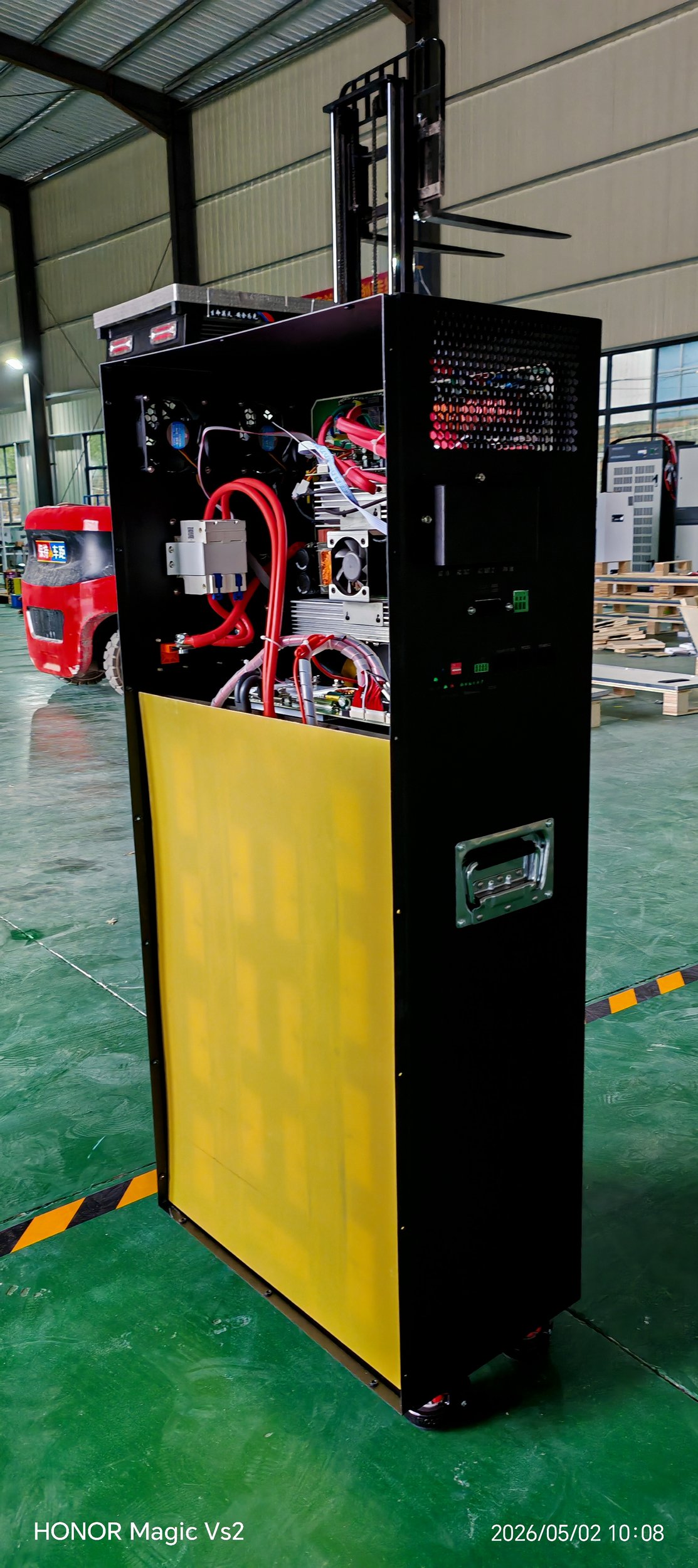

Stackable energy storage systems 20-64 kWh are oriented toward medium to large three-phase loads.The modular stacking design allows the single cabinet capacity to be expanded from 20 kWh to 64 kWh, supporting up to 8 sets of parallel connections to form a battery array of more than 160 kWh.This feature is especially critical for island resorts, communication base station groups, and small processing plants - initially invested at 20 kWh, and gradually expanded with load growth to avoid excessive one-time capital expenditures.The product has passed CE certification, and UN38.3 and IEC 62109 report available upon request, which can meet the basic requirements of import customs clearance and grid-connected review in Southeast Asian countries.

It should be noted that the above cycle life data is based on 25°C standard operating conditions.In the actual deployment in Southeast Asia, the ambient temperature is 30-38°C year-round, and the temperature rise inside the battery cabinet will stack up to 3–5°C.Therefore, we generally recommend that customers reserve 10–15% capacity margin in B2B delivery and prioritize products with active equalization (G4) and temperature protection strategies.For a complete selection logic similar to the high temperature and high humidity market, see [Selection options for wall-mounted lithium iron phosphate energy storage batteries in Pakistan and Bangladesh under the normalization of power limitation in South Asia] (/uk/solutions/), where the derating calculation model is also applicable to Southeast Asia.

IV. Engineering Considerations for High Temperature and Humidity Environments

Heat dissipation and installation position. Wall-mounted batteries should be protected from direct sunlight and preferentially installed in well-ventilated rooms or under sunshades.It is recommended to keep a clearance of more than 10cm around the cabinet, and evaluate forced air cooling when the ambient temperature exceeds 40°C.

Salt spray protection. Island projects should confirm that the cabinet coating and connectors meet the requirements of salt spray testing, and install protective covers if necessary.Installers should check terminals for oxidation during acceptance.

BMS Communication compatibility. The hybrid inverter brands in the Southeast Asian market are decentralized, and Victron, Deye, Sunsynk, Growatt, etc. have a high share.The BMS protocol should be checked for compatibility with the target inverter prior to bulk purchase to avoid on-site commissioning and rework.

Logistics and customs clearance. Lithium iron phosphate batteries belong to category 9 dangerous goods, and the UN38.3 report is a necessary document for sea and air transportation.Projects sent to Indonesia and the Philippines also need to pay attention to local SNI and bps certification requirements, and it is recommended to clarify the division of certification responsibilities in the contract.

ROI calculation. Taking an off-grid store in the Philippines that consumes 30 kWh per day as an example, the cost of diesel power generation is about 0.45 USD/kWh, and the annual operating cost is about 4,900 USD.After switching to photovoltaic +20 kWh stacked energy storage, the annual diesel consumption can be reduced by more than 70% according to the local sunshine of 4.8 kWh/m ²/day, and the static investment payback period is usually 3–4 years.The specific values vary with the diesel price, photovoltaic ratio and load curve, and need to be modeled separately according to the project.

Frequently Asked Questions

Q1: Wall-mounted 5-10 kWh and stackable 20-64 kWh, what should I choose for the island project?

A: Daily power consumption of 8–20 kWh, single-phase load selection wall-mounted type; daily power consumption of more than 30 kWh or three-phase load selection stacked type.Both support parallel capacity expansion, which can be invested in phases according to the initial budget.

Q2: How much will the cycle life of lithium iron phosphate batteries decay at 35°C?

A: Cycle life is generally reduced by about 20–30% at 35°C compared to 25°C.It is recommended to reserve a 10–15% capacity margin and ensure ventilation in the installation position to avoid superposition of temperature rise in the cabinet.

Q3: Does the product support communication with mainstream inverters such as Victron and Deye?

A: Supports RS485 and can protocols to interface with mainstream hybrid inverters.Please provide the target inverter model before bulk purchase. We will issue communication configuration instructions after confirming compatibility.

Q4: What certification documents are required for export to Vietnam, the Philippines, and Indonesia?

A: The product has passed CE certification, UN38.3 and IEC 62109 report available upon request.Indonesia and the Philippines have separate local certification requirements, and it is recommended to clarify the division of responsibilities in the contract.

Q5: What is the minimum order and delivery time?

A: For wholesalers and importers, the specific MOQ and delivery date are confirmed according to the model and destination port. Please contact the sales team for a quotation.

Conclusion

The demand for energy storage in Southeast Asian islands and high-priced scenarios is shifting from "backup power" to "main power".The wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage systems provide a replicable B2B portfolio for distributors and installers in Vietnam, the Philippines, and Indonesia with modular capacity expansion, more than 2,000 cycle life, and mature BMS communication capabilities.The core of the selection is always the four variables of load list, DoD, ambient temperature and ROI, not a single capacity number.

This article was written by the Hebei (G2) (Changing Energy) technical team, based on the actual deployment experience of the Southeast Asian market and CE, UN38.3, IEC 62109 related test data.
