Southeast Asian island off-grid and high-priced scenarios: wall-mounted 5-10 kWh and stackable 20-64 kWh lithium iron phosphate energy storage options

At farms in the Mekong Delta of Vietnam, resorts in the Visayas of the Philippines, and fishing refrigeration sites off the coast of Sulawesi, Indonesia, diesel power generation costs perennially fall at 0.35-0.55 USD/kWh, and some remote islands even exceed 0.60 USD/kWh.Meanwhile, electricity prices in Vietnam's peak industrial and commercial segments continued to rise, with power outages averaging 2–6 hours per day on several Philippine islands.For local dealers and installers, the lithium iron phosphate energy storage system is not an environmentally friendly option, but a calculable electricity cost issue.Based on our practical deployment experience in several island projects in Southeast Asia, this paper disassembles the selection logic of two product lines, the wall-mounted 5–10 kWh and the stacked 20–64 kWh.

Why the Southeast Asian island scene favors lithium iron phosphate

The first demand for energy storage batteries in the island and coastal markets is not energy density, but thermal stability and cycle life.The thermal runaway start temperature of lithium iron phosphate (LiFePO4) is significantly higher than that of the ternary system, and the decay is more gentle at 35-45°C perennial ambient temperature.Taking the 51.2V nominal voltage platform as an example, with a cycle life of more than 6,000 cycles (0.5C, 25°C, 80% DoD conditions), a system can support more than 10 years of use under an average daily charge and discharge cycle, which is particularly critical for island projects that require trans-sea transportation and extremely narrow operation and maintenance windows.

The second requirement is the flexibility of parallel expansion .Island projects are often constructed in phases: the first phase is 5–10 kWh to meet lighting, communication and small refrigeration, and the second phase is stacked above 20 kWh with the expansion of guest rooms or production capacity.The wall-mounted and stacked platforms share the same voltage platform and BMS communication protocol, which can be expanded without changing the original inverter architecture, which is the most important compatibility for dealers when stocking.

Wall-mounted 5-10 kWh: The main force of small-load off-grid and high-priced peak cutting

The wall-mounted product line covers 5 kWh to 10 kWh, the nominal voltage is 51.2V, and the lithium iron phosphate cell and wall-mounted structure are adopted.Its target customers are very clear: family workshops and small shops on the Philippine islands, rooftop photovoltaic home-users in high-priced areas of Vietnam, communication relay stations and lighting loads on the Indonesian islands.

The typical load list is as follows (calculated as 5 kWh usable capacity, 80% DoD, actually available about 4 kWh):

Under the above load, the 5 kWh model can cover single-day electricity consumption and retain about 30% of the balance, and can support one and a half days on rainy days.If the load contains a 1HP air conditioner or water pump, it is recommended to switch directly to a 10 kWh model or stacked scheme to avoid long-term deep discharge compression cycle life.

Selection points: Prioritize confirming the charging voltage interval of the inverter and the BMS communication interface.Our wall-mounted products support the mainstream can/RS485 protocol, which can directly shake hands with the inverse control all-in-one machine and reduce on-site commissioning time - this directly determines the installation cost on island projects.

Stackable 20-64 kWh: Resort, Cold Storage & Microgrid Level Applications

Wall-mounted capacity boundaries emerge when loads rise to resort rooms, catch cold storage, small processing plants, or community microgrids.The stackable energy storage system covers 20 kWh to 64 kWh, adopts a modular stacking structure, has a single module standardized design, and can be assembled on-site without a dedicated rack.For the Indonesian-Philippine island project, this means that it can be transported in small boats and installed by 2 technicians in one day.

Capacity estimation recommendations are advanced in the following order:

1. List peak loads , distinguish between resistive loads and inductive loads (air conditioning, water pumps, compressor starting currents are usually 3–5 times rated);
2. Determine standby time targets (island projects often have 8–12 hours of night standby power, or 1–2 days of full off-grid self-sustainment);
3. Calculate photovoltaic or diesel charging capacity , ensure charging power matches battery capacity, and avoid long-term undercharge;
4. Reserve 20–30% expansion margin , leaving room for second-phase load growth.

Taking an 8-room island resort as an example, the night load is about 3.5 kW, lasting 10 hours, and the daily power consumption is about 35 kWh.Configuring a 40 kWh stackable system (32 kWh available at 80% DoD) with daytime photovoltaic charging can compress the diesel generator operation time to a daily emergency window of 2–3 hours, and the investment payback period is usually in the range of 3–5 years, depending on the photovoltaic output and load curve, according to the local diesel cost of 0.45 USD/kWh.

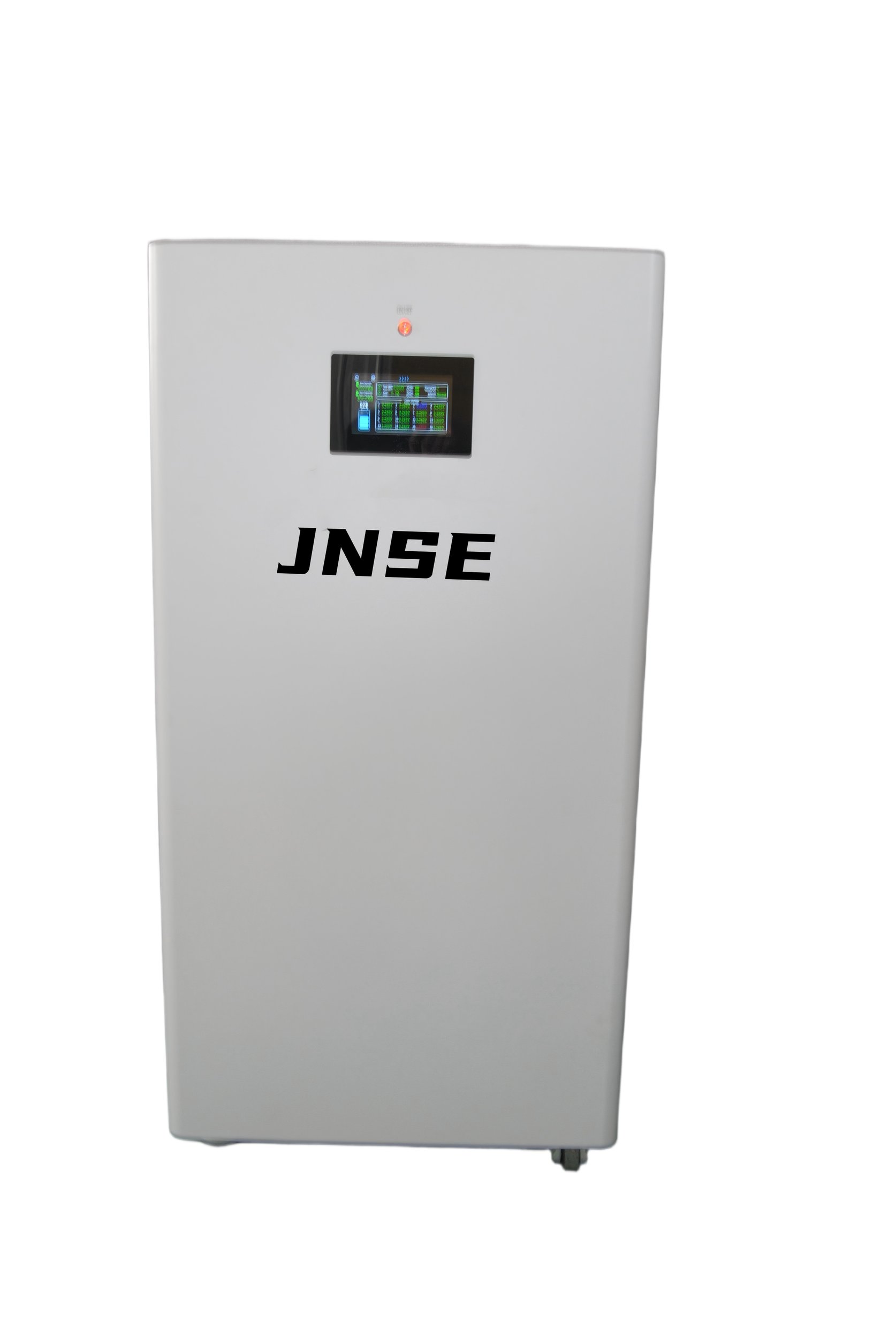

Combination logic of inverse control all-in-one computer and system integration

There is a general lack of professional power engineers in island projects, so the simplicity of system integration directly affects the project delivery cycle.The inverter-in-one machine integrates the hybrid inverter with the controller to reduce the on-site wiring nodes. With the above two battery product lines, a "photovoltaic + energy storage + firewood" three-source complementary architecture can be formed.

Dealers need to be alerted to BMS protocol matching issues.The degree of support for battery communication protocols for inverters of different brands varies greatly. Before placing an order, you should confirm whether the target inverter model is in the compatibility list or reserve the budget for the protocol conversion module.It is recommended to complete the communication coordination at the prototype stage, rather than waiting until the container arrives in port - the rework cost of the island project is much higher than inland.

Precautions for certification compliance and delivery

Shipping to the Vietnamese, Philippine, and Indonesian markets, certification documents are a hard threshold for customs clearance and bidding.Our product line has obtained CE certification, and UN38.3 and IEC 62109 report available upon request, which can cooperate with the dealer to complete the local access declaration.Lithium battery shipping is required to provide a test summary and dangerous package proof as required by UN38.3, and it is recommended to clarify the division of documentary responsibilities in the contract.

In addition, the high temperature and humidity environment in Southeast Asia has practical requirements for the installation location: the battery should avoid direct sunlight, the installation space should be kept ventilated, and the ambient temperature should be controlled within the range of 0-45°C.In the island salt spray environment, it is recommended to select a location with a protection level that meets outdoor or semi-outdoor installation conditions, and regularly check the terminal for corrosion.

Frequently Asked Questions

Q1: How can wall-mounted 5 kWh and 10 kWh quickly determine which to choose?

First, calculate the daily power consumption.If the daily power consumption is less than 3 kWh and there is no inductive load of air conditioning and water pumps, 5 kWh is sufficient; if it exceeds 3.5 kWh or contains a motor load of 1HP or more, directly select 10 kWh to avoid long-term deep discharge.

Q2: Can stackable systems be expanded later?

Yes. The stacked type is a modular design, supporting parallel expansion under the same voltage platform. When expanding the capacity, it is necessary to keep the battery batch close to the number of cycles. It is recommended that the original installer operate and recalibrate the BMS parameters.

Q3: How much will the cycle life of lithium iron phosphate shrink under high temperatures in Southeast Asia?

At 35–45°C, the cycle life is generally 10–20% lower than the nominal value of 25°C.When selecting models, it is recommended to make a conservative estimate of 80% of the nominal cycle life, and give priority to ensuring ventilation at the installation location.

Q4: What certifications are required for products exported to Vietnam, the Philippines, and Indonesia?

Based on CE certification, UN38.3 is used for maritime transportation, IEC 62109 is used for inverter and system safety assessment.Specific customs clearance requirements vary by country. Report available upon request. It is recommended to confirm the list with the local importer before placing the order.

Q5: Is the inverse control all-in-one compatible with third-party batteries?

Depends on the communication protocol.Models that support can/RS485 and have an open protocol are compatible, but need to be verified in advance.We recommend the purchase of complete equipment to reduce the risk of commissioning.

Conclusion

The energy storage demand in the Southeast Asian island market is shifting from "emergency backup" to "cost optimization", which puts higher demands on the distributor's product portfolio capacity: 5–10 kWh wall-mounted products must cover dispersed small loads, and 20–64 kWh stacked systems must undertake resort and cold storage-level projects.Based on the practical deployment experience of multiple off-grid and high-priced scenarios in Vietnam, the Philippines, and Indonesia, the Hebei 蝉鸣新能源 (Chanming Energy) technical team provides a complete B2B package from capacity selection, BMS protocol matching, and certification document support. Dealers and installers are welcome to select and dock with specific project load lists.

This article was written by the 蝉鸣新能源 (Chanming Energy) energy storage system technical team in Hebei Province, and the parameters are based on laboratory standard operating conditions and field deployment experience in Southeast Asia.
